Description
Ceratizit Article Number: 8422806091
Ceratizit Material Number: 12540312
Ceratizit Komet Number (Unpacked): A40 17072
Ceratizit Komet Number (Packed): A4017072
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

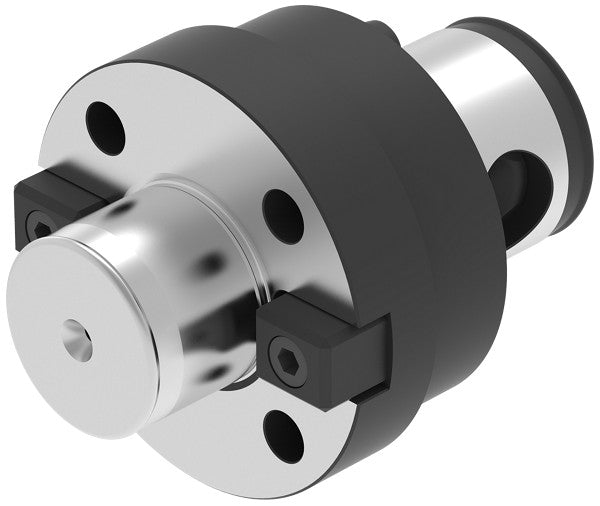

| Name | Ceratizit MILLING CUTTER ARBOR ABS100-FAM60 DIN63 Shell Mill Adapter With Connection 8422806091 | |
| EDP # | 0755882 | |
| Weight (1 pc.) | 227.0 oz | 6432 g |
| Machine interface size | ABS 100 | |
| Clamping diameter (DCONWS) / DCONWS | 2.3622" | 60.000 mm |
| Functional length / LF | 2.2047" | 56.000 mm |
| Neck diameter (BD) / BD | 5.1181" | 130.000 mm |
| Clamping length machine side / LSC | 1.5748" | 40.000 mm |
| Mounting spigot diameter / DCONMS | 2.2047" | 56.000 mm |
| Flange diameter / DF | 3.9370" | 100.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
