Description
Ceratizit Article Number: 8421204096
Ceratizit Material Number: 12540389
Ceratizit Komet Number (Unpacked): A55 55160
Ceratizit Komet Number (Packed): A5555160
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

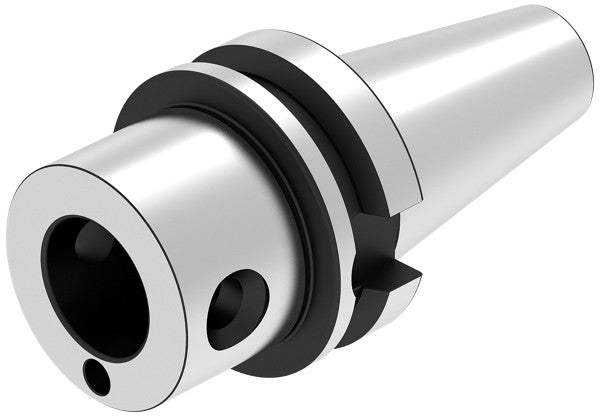

| Name | Ceratizit SHANK BT40 ABS63/ISO40/1500 Adapter With Connection 8421204096 | |
| EDP # | 0755919 | |
| Weight (1 pc.) | 62.0 oz | 1760 g |

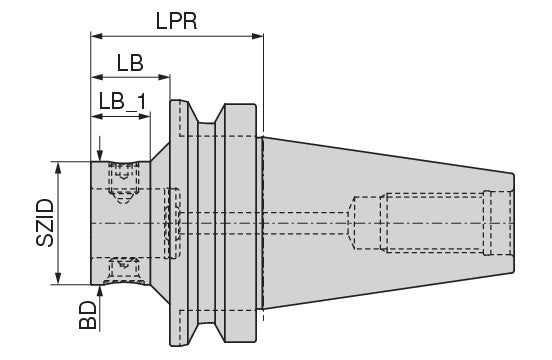

| Machine interface size | BT 40 | |
| nominal size / SZID | ABS 63 | |
| Protruding length / LPR | 2.7559" | 70.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 1.3386" | 34.000 mm |
Background Information:
The BT system utilizes a proven "fast taper" (7:24) self-releasing format and is common among non-European machine tools. Note that ISO, CAT, BT, and SK are NOT interchangeable even though they use the same basic taper!.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
