Description
Ceratizit Article Number: 8421508096
Ceratizit Material Number: 12540410
Ceratizit Komet Number (Unpacked): A69 08060
Ceratizit Komet Number (Packed): A6908060
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

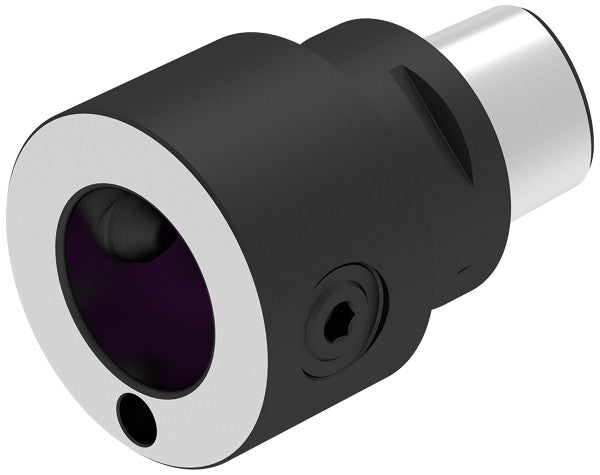

| Name | Ceratizit ATTACHEMENT PSC C8 / ABS 63 L=60 Adapter With Connection 8421508096 | |
| EDP # | 0755931 | |
| Weight (1 pc.) | 80.0 oz | 2276 g |
| Machine interface size | PSC 80 | |
| nominal size / SZID | ABS 63 | |
| Protruding length / LPR | 2.3622" | 60.000 mm |
| Mounting spigot diameter / DCONMS | 2.1654" | 55.000 mm |
| Overall length / OAL | 4.2520" | 108.000 mm |
| Body length / LB | 1.1811" | 30.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 1.3386" | 34.000 mm |
Background Information:
PSC, or 'Polygonal Shank Coupling (ISO 26623)', holders are made to work with the Sandvik Capto interface without licensing the trademark name.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
