Description
Ceratizit Article Number: 6286902000
Ceratizit Material Number: 12540653
Ceratizit Komet Number (Unpacked): M30 04111
Ceratizit Komet Number (Packed): M3004111
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit CARTRIDGE FZ10-20-5 CoreLine Precision Turning Insert 6286902000 | |
| EDP # | 0755979 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Aluminum (Green) Aluminum (Green) Composites (Black) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Hard/Tool Steel (Grey) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 22.1 g |
| Product-Carbon-Footprint | E | |
| Productsystem | FZ | |

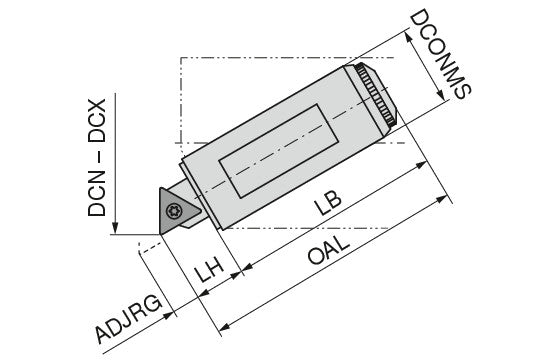

| Functional length / LF | 1.1220" | 28.500 mm |
| Mounting spigot diameter / DCONMS g6 | 0.3937" | 10.000 mm |
| Insert | TO.X 06T1.. | |
| for | 62 811 02089 | |
| Overall length / OAL | 1.1220" | 28.500 mm |
| Head length / LH | 0.1890" | 4.800 mm |
| Body length / LB | 0.9331" | 23.700 mm |
| Cutting diameter maximum / DCX | 1.0236" | 26.000 mm |
| Cutting diameter minimum / DCN | 0.7874" | 20.000 mm |
| Adjustment range / ADJRG | 0.0787" | 2.000 mm |
| torque moment | 0.62 Nm | |
| Version | Cutting form 5 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
