Description
Ceratizit Article Number: 6285504700
Ceratizit Material Number: 12540657
Ceratizit Komet Number (Unpacked): M30 20031
Ceratizit Komet Number (Packed): M3020031
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

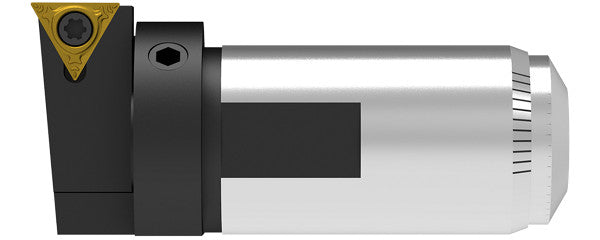

| Name | Ceratizit CARTRIDGE FF16-47 CoreLine Precision Turning Insert 6285504700 | |
| EDP # | 0755983 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Aluminum (Green) Aluminum (Green) Composites (Black) Hard/Tool Steel (Grey) All Materials (White) | |
| Weight (1 pc.) | 3.0 oz | 76.2 g |
| Productsystem | FF | |

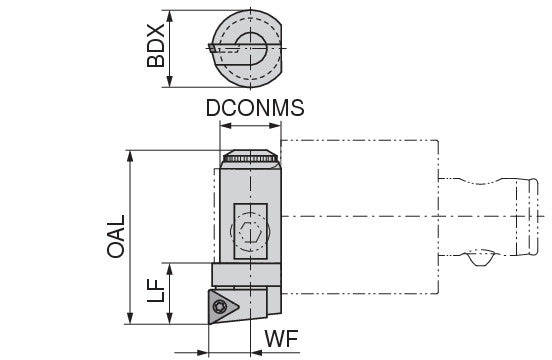

| Functional length / LF | 0.6299" | 16.000 mm |
| Mounting spigot diameter / DCONMS | 0.6299" | 16.000 mm |
| Insert | TO.. 0902 | |
| for | 62 810 05788 / 62 810 06688 | |
| Overall length / OAL | 1.7717" | 45.000 mm |
| Cutting diameter maximum / DCX | 2.5984" | 66.000 mm |
| Cutting diameter minimum / DCN | 1.8504" | 47.000 mm |
| Adjustment range / ADJRG | 0.1969" | 5.000 mm |
| Functional width / WF | 0.4331" | 11.000 mm |
| torque moment | 1.28 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
