Description
Ceratizit Article Number: 6285513800
Ceratizit Material Number: 12540661
Ceratizit Komet Number (Unpacked): M30 20071
Ceratizit Komet Number (Packed): M3020071
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

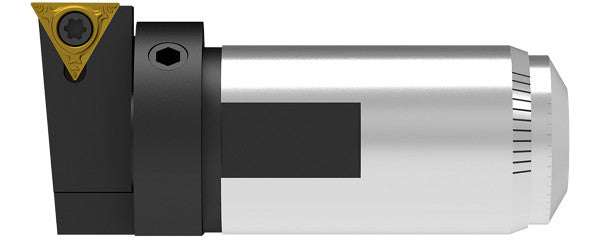

| Name | Ceratizit CARTRIDGE FF32-138 KOMET MicroKom Precision Turning Insert 6285513800 | |
| EDP # | 0755987 | |
| Workpiece Material(s) | Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Hard/Tool Steel (Grey) Aluminum (Green) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Hard/Tool Steel (Grey) HiTemp Alloy (Orange) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 29.0 oz | 825 g |

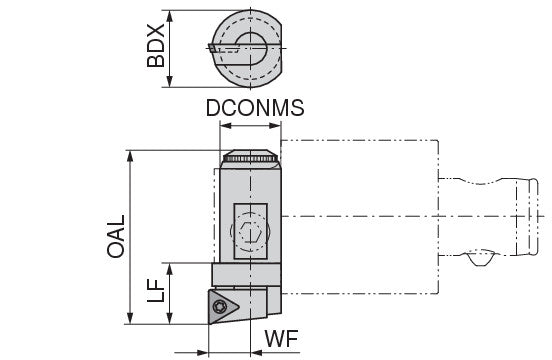

| Functional length / LF | 1.0039" | 25.500 mm |
| Mounting spigot diameter / DCONMS | 1.2598" | 32.000 mm |
| Insert | TO.. 1403 | |
| for | 62 810 15991 / 62 810 17991 / 62 810 19991 | |
| Overall length / OAL | 5.1575" | 131.000 mm |
| Cutting diameter minimum / DCN | 5.4331" | 138.000 mm |
| Adjustment range / ADJRG | 0.4331" | 11.000 mm |
| Functional width / WF | 0.7480" | 19.000 mm |
| torque moment | 2.8 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
