Description
Ceratizit Article Number: 6285513900
Ceratizit Material Number: 12540663
Ceratizit Komet Number (Unpacked): M30 20211
Ceratizit Komet Number (Packed): M3020211
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

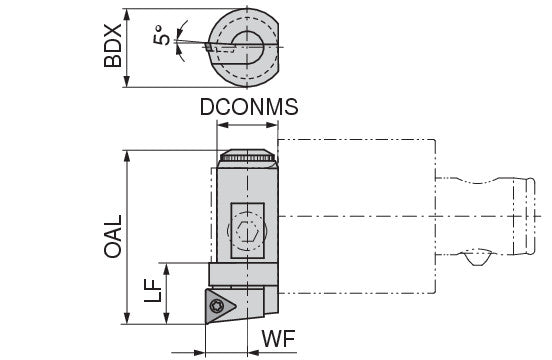

| Properties | ||
|---|---|---|

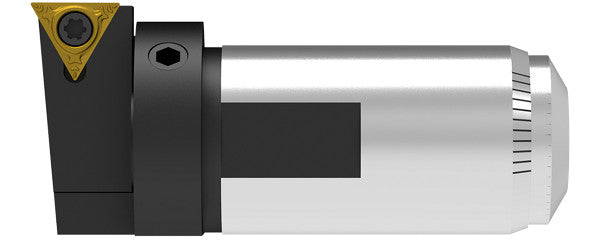

| Name | Ceratizit CARTRIDGE FF 12-T06-39 CoreLine Precision Turning Insert 6285513900 | |
| EDP # | 0755988 | |
| Weight (1 pc.) | 1.0 oz | 41.0 g |
| Product-Carbon-Footprint | E | |
| Productsystem | FF | |
| Functional length / LF | 1.4862" | 37.750 mm |
| Mounting spigot diameter / DCONMS | 0.4724" | 12.000 mm |
| Insert | TP.. 0601.. | |
| for | 62 810 04589 / 62 810 05089 | |
| Overall length / OAL | 1.4862" | 37.750 mm |
| Cutting diameter maximum / DCX | 1.9685" | 50.000 mm |
| Cutting diameter minimum / DCN | 1.5354" | 39.000 mm |
| Adjustment range / ADJRG | 0.1378" | 3.500 mm |
| Functional width / WF | 0.3543" | 9.000 mm |
| torque moment | 0.62 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
