Description
Ceratizit Article Number: 6284605300
Ceratizit Material Number: 12540673
Ceratizit Komet Number (Unpacked): M30 51041
Ceratizit Komet Number (Packed): M3051041
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

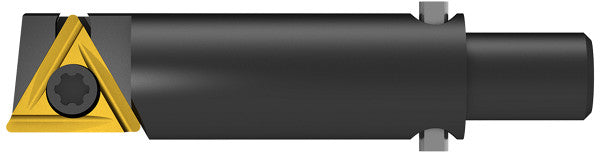

| Name | Ceratizit INSERT BORING TOOL U16Z2-804 CoreLine Precision Turning FZ 6284605300 | |
| EDP # | 0755990 | |
| Workpiece Material(s) | Stainless Steel (Yellow) Steel (Blue) Cast Iron (Red) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Aluminum (Green) Aluminum (Green) Composites (Black) Hard/Tool Steel (Grey) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 17.2 g |
| Product-Carbon-Footprint | E | |
| Productsystem | FZ | |

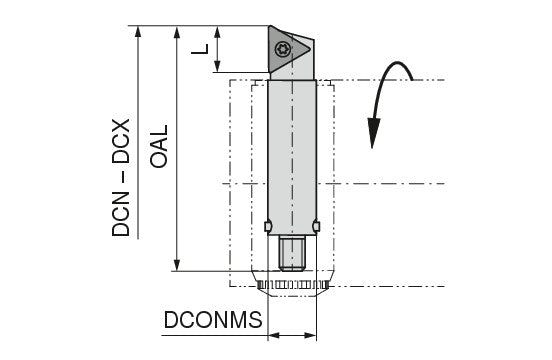

| Mounting spigot diameter / DCONMS | 0.3386" | 8.600 mm |
| Insert | TO.X 0902.. | |
| for | 62 847 05300 / 62 847 05900 | |
| Overall length / OAL | 1.5630" | 39.700 mm |
| Cutting edge length / L | 0.3543" | 9.000 mm |
| Cutting diameter maximum / DCX | 3.1102" | 79.000 mm |
| Cutting diameter minimum / DCN | 2.0866" | 53.000 mm |
| Functional width / WF | 0.1496" | 3.800 mm |
| torque moment | 1.28 Nm | |
| Version | Cutting form 2 | |
| Minimum Extension (DIN 6535 HA) | -0.0118" - 0.0669" | -0.300 - 1.700 mm |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
