Description
Ceratizit Article Number: 6284604500
Ceratizit Material Number: 12540688
Ceratizit Komet Number (Unpacked): M30 53041
Ceratizit Komet Number (Packed): M3053041
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

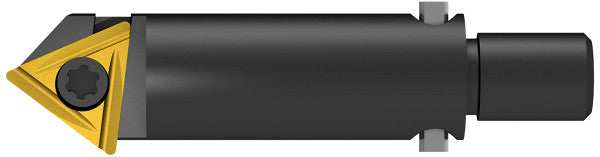

| Name | Ceratizit INSERT BORING TOOL U16Z4-804 FZ Precision Turning Insert 6284604500 | |
| EDP # | 0755991 | |
| Workpiece Material(s) | Aluminum (Green) Composites (Black) HiTemp Alloy (Orange) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Hard/Tool Steel (Grey) Aluminum (Green) Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) Hard/Tool Steel (Grey) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 17.0 g |

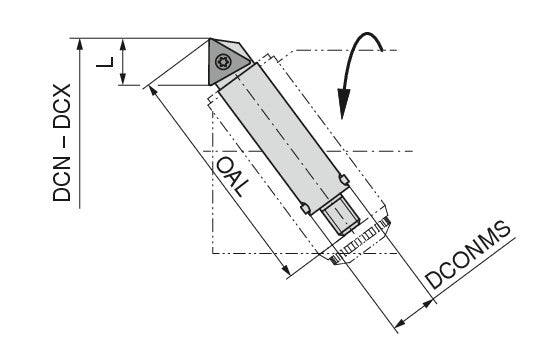

| Mounting spigot diameter / DCONMS | 0.3386" | 8.600 mm |
| Insert | TO.X 0902.. | |
| Overall length / OAL | 1.5630" | 39.700 mm |
| Cutting edge length / L | 0.3543" | 9.000 mm |
| Cutting diameter maximum / DCX | 2.3465" | 59.600 mm |
| Cutting diameter minimum / DCN | 1.7717" | 45.000 mm |
| torque moment | 1.28 Nm | |
| Version | Cutting form 4 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
