Description
Ceratizit Article Number: 1082340813
Ceratizit Material Number: 12541007
Ceratizit Komet Number (Unpacked): W29 42130.0404
Ceratizit Komet Number (Packed): W29421300404
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

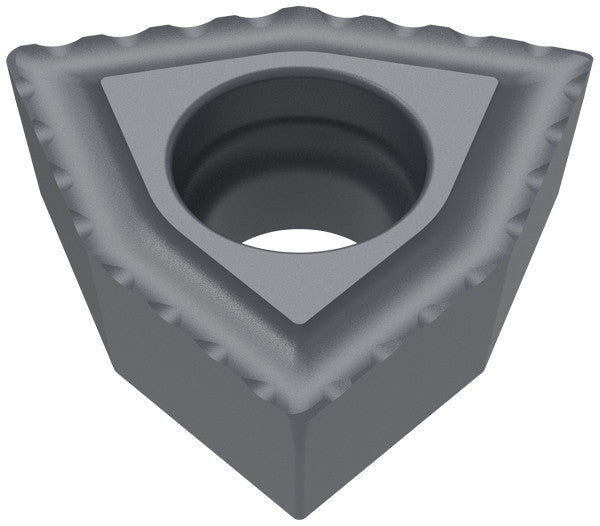

| Name | Ceratizit Insert WOEX080404-13P40; CoreLine Carbide Drilling indexable 1082340813 | |
| EDP # | 0756007 | |
| Weight (1 pc.) | 0.3 oz | 8.2 g |
| Inscribed circle diameter / IC | 0.4724" | 12.000 mm |
| designation | 80404.0000" | 2042261.600 mm |
| insert thickness | 4.0000" | 101.600 mm |
| Fixing hole diameter / D1 | 0.1929" | 4.900 mm |
| Insert thickness / S | 0.1890" | 4.800 mm |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.3110" | 7.900 mm |
| Size | 8.0000" | 203.200 mm |
| Coating name / Grade (Ceratizit) / COATN | P40 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
