Description
Ceratizit Article Number: 1082186020
Ceratizit Material Number: 12541015
Ceratizit Komet Number (Unpacked): W29 50200.042730
Ceratizit Komet Number (Packed): W2950200042730
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

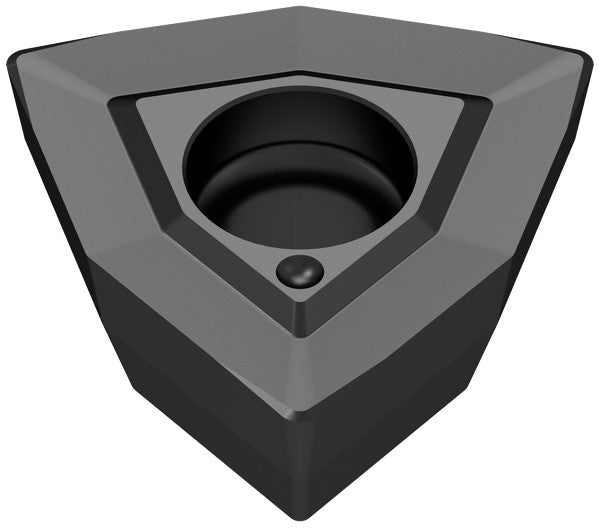

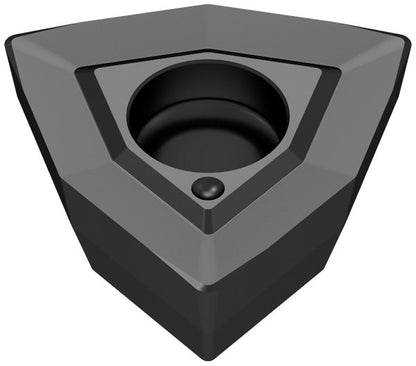

| Name | Ceratizit Insert WOEX100504-20 BK2730 CoreLine Carbide Drilling indexable 1082186020 | |
| EDP # | 0756013 | |
| Weight (1 pc.) | 1.0 oz | 15.4 g |
| Inscribed circle diameter / IC | 0.5906" | 15.000 mm |
| designation | 100504.0000" | 2552801.600 mm |
| insert thickness | 5.0000" | 127.000 mm |
| Fixing hole diameter / D1 | 0.1929" | 4.900 mm |
| Insert thickness / S | 0.2087" | 5.300 mm |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.3898" | 9.900 mm |
| Size | 10.0000" | 254.000 mm |
| Coating name / Grade (Ceratizit) / COATN | BK2730 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
