Description
Ceratizit Article Number: 1082245501
Ceratizit Material Number: 12541030
Ceratizit Komet Number (Unpacked): W83 13010.046420
Ceratizit Komet Number (Packed): W8313010046420
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

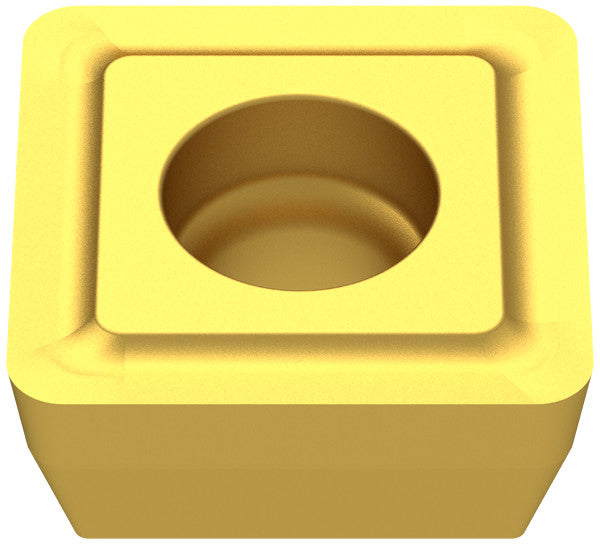

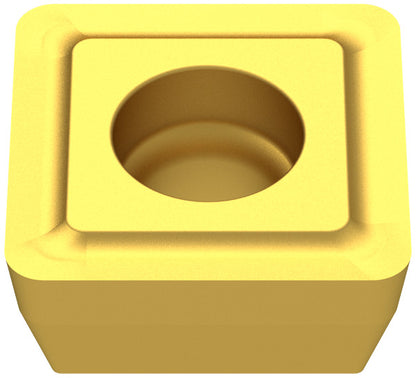

| Name | Ceratizit INSERT SOEX050204-01 BK6420 CoreLine Carbide Drilling indexable 1082245501 | |
| EDP # | 0756017 | |
| Weight (1 pc.) | 0.1 oz | 1.9 g |

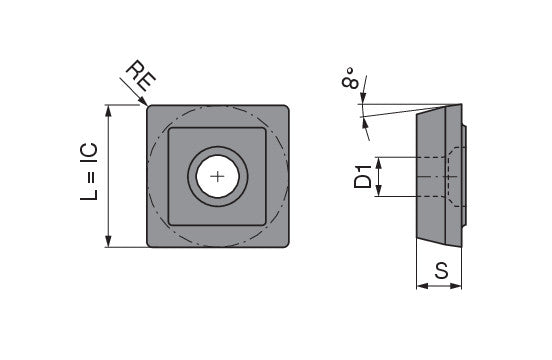

| Inscribed circle diameter / IC | 0.2189" | 5.560 mm |
| designation | 50204.0000" | 1275181.600 mm |
| insert thickness | 2.0000" | 50.800 mm |
| Fixing hole diameter / D1 | 0.0906" | 2.300 mm |
| Insert thickness / S | 0.0937" | 2.380 mm |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.2189" | 5.560 mm |
| Size | 5.0000" | 127.000 mm |
| Coating name / Grade (Ceratizit) / COATN | BK6420 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
