Description
Ceratizit Article Number: 1082165415
Ceratizit Material Number: 12541638
Ceratizit Komet Number (Unpacked): W29 18150.0460
Ceratizit Komet Number (Packed): W29181500460
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

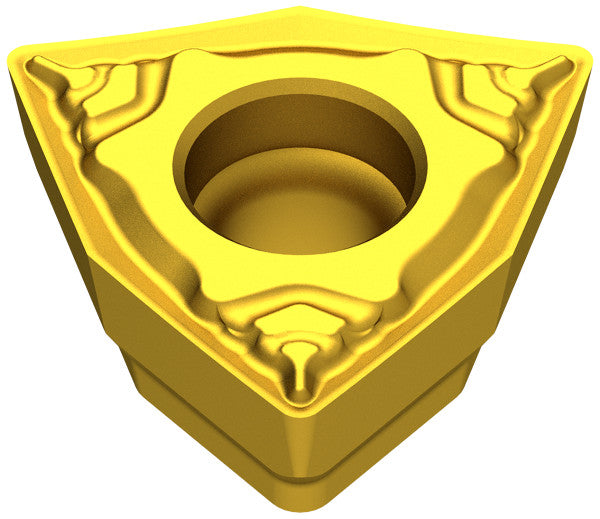

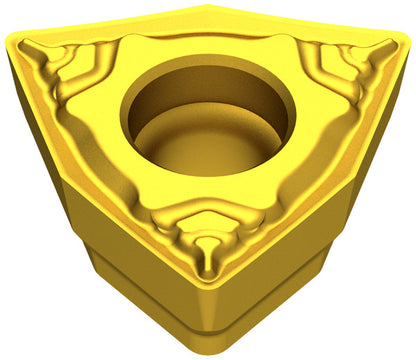

| Name | Ceratizit Insert WOGX040304-15BK60 CoreLine HM indexable 1082165415 | |
| EDP # | 0756031 | |
| Weight (1 pc.) | 0.2 oz | 5.0 g |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| designation | 40304.0000" | 1023721.600 mm |
| insert thickness | 3.0000" | 76.200 mm |
| Fixing hole diameter / D1 | 0.0984" | 2.500 mm |
| Insert thickness / S | 0.1252" | 3.180 mm |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.1614" | 4.100 mm |
| Size | 4.0000" | 101.600 mm |
| Coating name / Grade (Ceratizit) / COATN | BK60 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
