Description
Ceratizit Article Number: 1082175515
Ceratizit Material Number: 12541640
Ceratizit Komet Number (Unpacked): W29 24150.0473
Ceratizit Komet Number (Packed): W29241500473
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

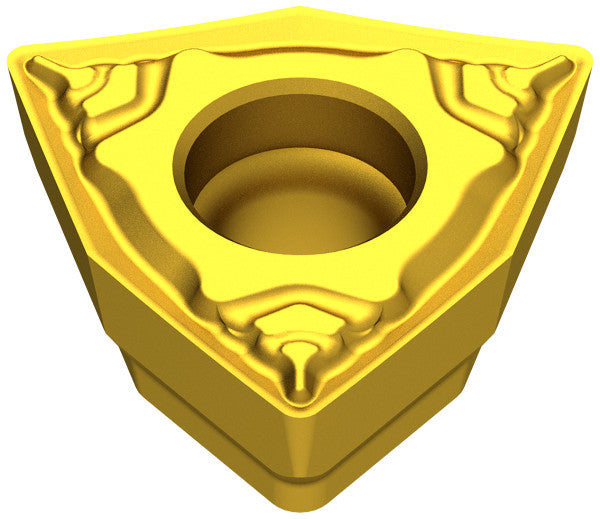

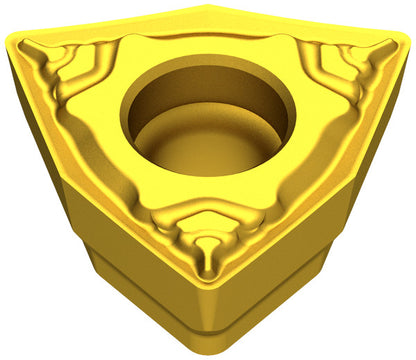

| Name | Ceratizit Insert WOGX05T304-15BK73 CoreLine HM indexable 1082175515 | |
| EDP # | 0756033 | |
| Weight (1 pc.) | 0.2 oz | 7.0 g |
| Product-Carbon-Footprint | E | |
| Inscribed circle diameter / IC | 0.3150" | 8.000 mm |
| designation | 05T304 | |
| insert thickness | T3 | |
| Fixing hole diameter / D1 | 0.1102" | 2.800 mm |
| Insert thickness / S | 0.1496" | 3.800 mm |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.2087" | 5.300 mm |
| Size | 5.0000" | 127.000 mm |
| Coating name / Grade (Ceratizit) / COATN | BK73 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
