Description
Ceratizit Article Number: 1082255603
Ceratizit Material Number: 12541652
Ceratizit Komet Number (Unpacked): W83 18030.066730
Ceratizit Komet Number (Packed): W8318030066730
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

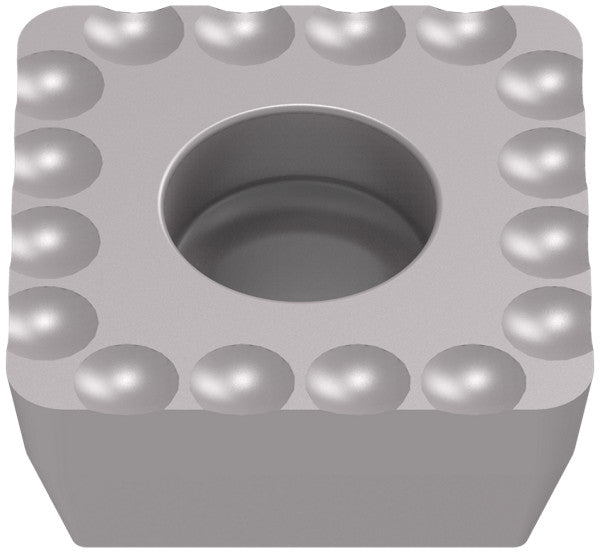

| Name | Ceratizit INSERT SOEX060306-03 BK6730 CoreLine Carbide Drilling indexable 1082255603 | |
| EDP # | 0756034 | |
| Weight (1 pc.) | 0.1 oz | 2.5 g |
| Product-Carbon-Footprint | C | |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| designation | 60306.0000" | 1531772.400 mm |
| insert thickness | 3.0000" | 76.200 mm |
| Fixing hole diameter / D1 | 0.1043" | 2.650 mm |
| Insert thickness / S | 0.1252" | 3.180 mm |
| Corner radius / RE | 0.0236" | 0.600 mm |
| Cutting edge length / L | 0.2500" | 6.350 mm |
| Size | 6.0000" | 152.400 mm |
| Coating name / Grade (Ceratizit) / COATN | BK6730 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
