Description
Ceratizit Article Number: 6260720401
Ceratizit Material Number: 12541661
Ceratizit Komet Number (Unpacked): W57 04180.0432
Ceratizit Komet Number (Packed): W57041800432
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

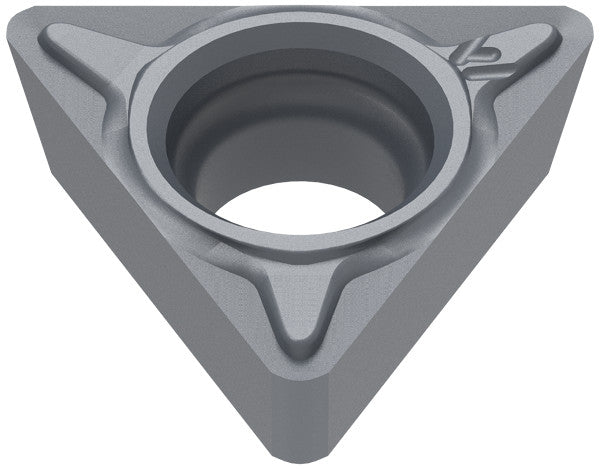

| Name | Ceratizit INSERT TOGX06T104EN-14BK-18 CK32 CoreLine CERMET indexable 6260720401 | |
| EDP # | 0756043 | |
| Weight (1 pc.) | 0.2 oz | 6.0 g |
| designation | 06T102EN | |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.2480" | 6.300 mm |
| Insert thickness / S | 0.0709" | 1.800 mm |
| Fixing hole diameter / D1 | 0.0866" | 2.200 mm |
| Inscribed circle diameter / IC | 0.1575" | 4.000 mm |
| Size | 6.0000" | 152.400 mm |
| Designation | TOGX 06T104EN | |
| Chip breaker (Ceratizit) / CBMD | -18 | |
| Coating name / Grade (Ceratizit) / COATN | CK32 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
