Description
Ceratizit Article Number: 6260113801
Ceratizit Material Number: 12541664
Ceratizit Komet Number (Unpacked): W57 14140.023230
Ceratizit Komet Number (Packed): W5714140023230
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

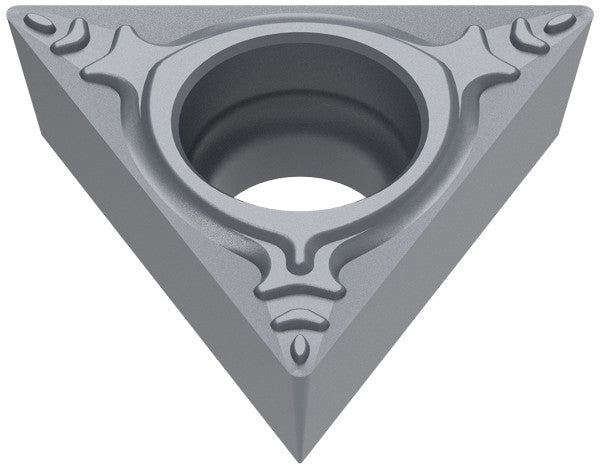

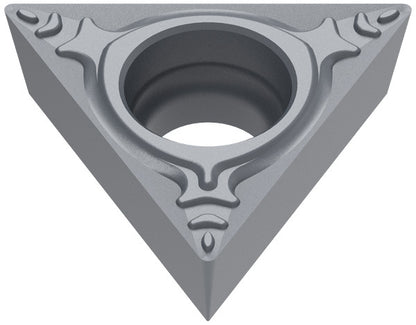

| Name | Ceratizit INSERT TOGX090202EN-14CK3230 CoreLine CERMET indexable 6260113801 | |
| EDP # | 0756045 | |
| Weight (1 pc.) | 0.1 oz | 1.8 g |
| designation | 090202EN | |

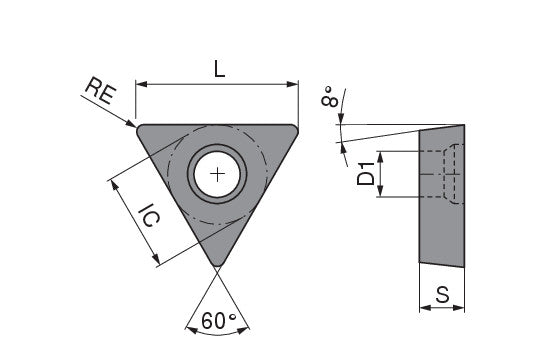

| Corner radius / RE | 0.0079" | 0.200 mm |
| Cutting edge length / L | 0.3705" | 9.410 mm |
| Insert thickness / S | 0.0984" | 2.500 mm |
| Fixing hole diameter / D1 | 0.1102" | 2.800 mm |
| Inscribed circle diameter / IC | 0.2205" | 5.600 mm |
| Size | 9.0000" | 228.600 mm |
| Designation | TOGX 090202EN | |
| Chip breaker (Ceratizit) / CBMD | -14 | |
| Coating name / Grade (Ceratizit) / COATN | CK3230 | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
