Description
Ceratizit Article Number: 6260721401
Ceratizit Material Number: 12541670
Ceratizit Komet Number (Unpacked): W57 14180.0432
Ceratizit Komet Number (Packed): W57141800432
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

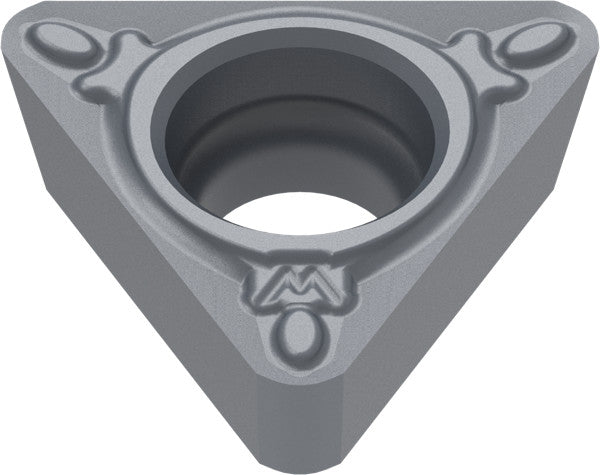

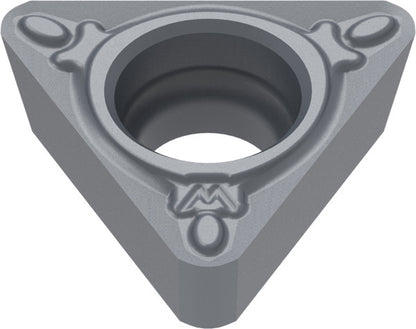

| Name | Ceratizit INSERT TOGX090204EN-18 TCM10 CoreLine CERMET indexable 6260721401 | |
| EDP # | 0756049 | |
| Weight (1 pc.) | 0.1 oz | 1.7 g |
| designation | 090204EN | |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.3583" | 9.100 mm |
| Insert thickness / S | 0.0984" | 2.500 mm |
| Fixing hole diameter / D1 | 0.1102" | 2.800 mm |
| Inscribed circle diameter / IC | 0.2205" | 5.600 mm |
| Size | 9.0000" | 228.600 mm |
| Designation | TOGX 090204EN | |
| Chip breaker (Ceratizit) / CBMD | -18 | |
| Coating name / Grade (Ceratizit) / COATN | CK32 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
