Description
Ceratizit Article Number: 4089103099
Ceratizit Material Number: 12543490
Ceratizit Komet Number (Unpacked): 540.36.004
Ceratizit Komet Number (Packed): 54036004
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit HALTER MIT ZYLINDERSCHAFT, LANG CoreLine - Holder For Rapid Head Set 4089103099 | |
| EDP # | 0756078 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) Aluminum (Green) Steel (Blue) Cast Iron (Red) Aluminum (Green) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 22.0 oz | 619 g |
| Product-Carbon-Footprint | B | |

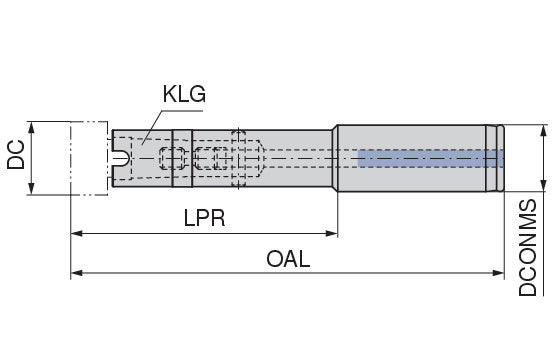

| Cutting edge Ø - range / DC | 24.01 - 30.10 | |
| Coupling Size | 5.0000" | 127.000 mm |
| Overall length / OAL | 8.6220" | 219.000 mm |
| Protruding length / LPR | 6.2598" | 159.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.9843" | 25.000 mm |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
