Description
Ceratizit Article Number: 8424206379
Ceratizit Material Number: 12543705
Ceratizit Komet Number (Unpacked): A01 01260
Ceratizit Komet Number (Packed): A0101260
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

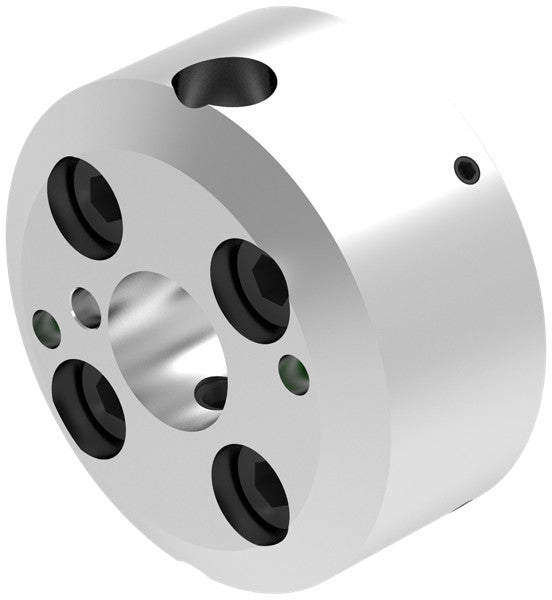

| Name | Ceratizit SPINDLE ADAPTOR FLANGE ABS63-VFS40 Spindle Attachment Flange With Connection 8424206379 | |
| EDP # | 0756136 | |
| Weight (1 pc.) | 0.1 oz | 2.7 g |
| Machine interface size | SK 40 | |
| nominal size / SZID | ABS 63 | |

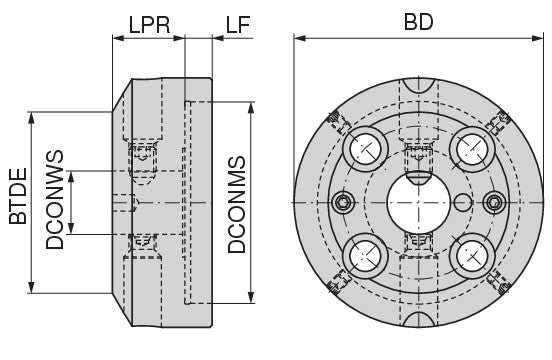

| Protruding length / LPR | 1.5748" | 40.000 mm |
| Body taper end diameter / BTED | 3.1496" | 80.000 mm |
| Mounting spigot diameter / DCONMS | 3.4992" | 88.880 mm |
| Overall length / OAL | 2.0472" | 52.000 mm |
| Functional length / LF | 0.4724" | 12.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 1.3386" | 34.000 mm |
Background Information:
The SK system utilizes a proven 'fast taper' (7:24) self-releasing format. These conform to DIN ISO 7388-1 (formerly DIN 69871). Note that ISO, CAT, BT, and SK are NOT interchangeable even though they use the same basic taper!.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
