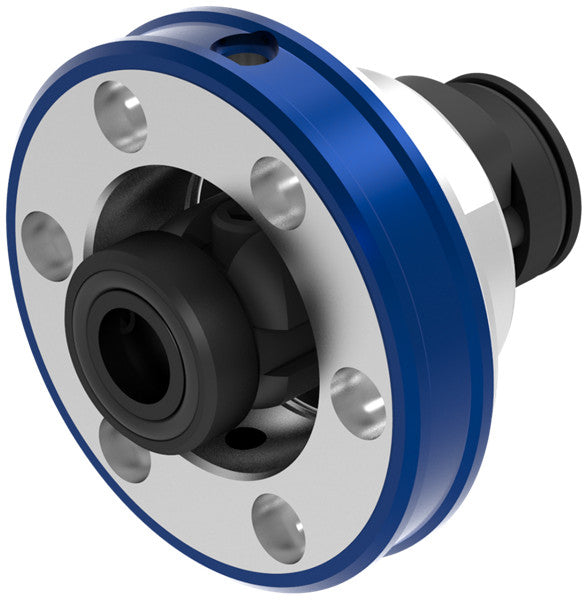

Ceratizit MOUNTING FLANGE HSK 50 KOMLOC CoreLine - HSK-REF 8424100258 (0756186)
Ceratizit MOUNTING FLANGE HSK 50 KOMLOC CoreLine - HSK-REF 8424100258 (0756186)
Couldn't load pickup availability
Ceratizit Article Number: 8424100258
Ceratizit Material Number: 12543771
Ceratizit Komet Number (Unpacked): A08 61060
Ceratizit Komet Number (Packed): A0861060
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

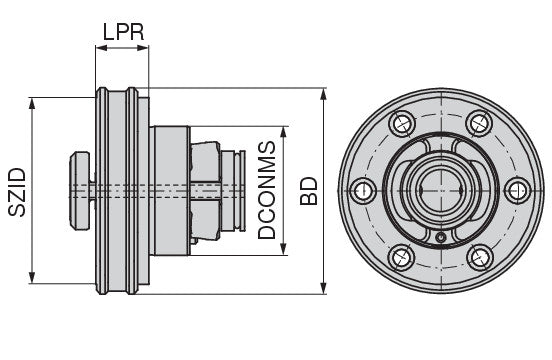

| Properties | ||
|---|---|---|
| Name | Ceratizit MOUNTING FLANGE HSK 50 KOMLOC CoreLine - HSK-REF 8424100258 | |
| EDP # | 0756186 | |
| Weight (1 pc.) | 22.0 oz | 634 g |
| Product-Carbon-Footprint | E | |
| nominal size / SZID | HSK-A 50 | |
| Protruding length / LPR | 0.6890" | 17.500 mm |
| Mounting spigot diameter / DCONMS | 1.6535" | 42.000 mm |
| Overall length / OAL | 2.0315" | 51.600 mm |
| Clamping diameter (DCONWS) / DCONWS | 1.9685" | 50.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
