Description
Ceratizit Article Number: 8424100158
Ceratizit Material Number: 12543772
Ceratizit Komet Number (Unpacked): A08 61070
Ceratizit Komet Number (Packed): A0861070
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

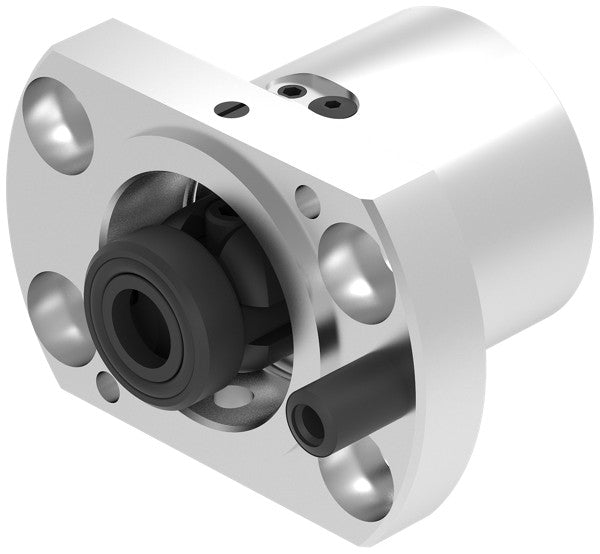

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

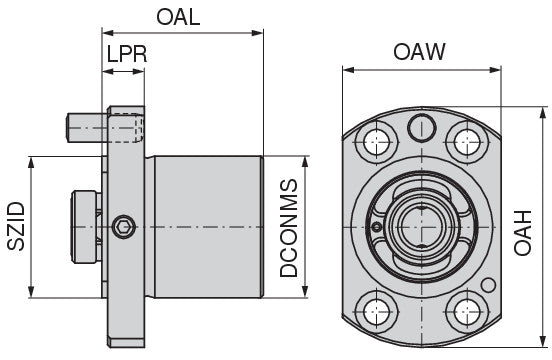

| Properties | ||
|---|---|---|
| Name | Ceratizit ADAPTOR FLANGE HSK 50 SEFR KOMLOC KOMET KOMloc - Mounting Flange HSK-SEFR 8424100158 | |
| EDP # | 0756187 | |
| Weight (1 pc.) | 33.0 oz | 941 g |
| nominal size / SZID | HSK-A 50 | |
| Protruding length / LPR | 0.5906" | 15.000 mm |
| Mounting spigot diameter / DCONMS | 1.9685" | 50.000 mm |
| Overall width / OAW | 2.2047" | 56.000 mm |
| Overall length / OAL | 2.2441" | 57.000 mm |
| Overall height / OAH | 3.3465" | 85.000 mm |
| Body length / LB | 0.0787" | 2.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 1.9685" | 50.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
