Description
Ceratizit Article Number: 6282720800
Ceratizit Material Number: 12543934
Ceratizit Komet Number (Unpacked): B00 00410
Ceratizit Komet Number (Packed): B0000410
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit BORING BAR UJ7.9 DIA.8MM SHK LH/WC KOMET MicroKom - Boring Bar 6282720800 | |
| EDP # | 0756211 | |
| Workpiece Material(s) | Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Hard/Tool Steel (Grey) Aluminum (Green) Hard/Tool Steel (Grey) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 31.6 g |

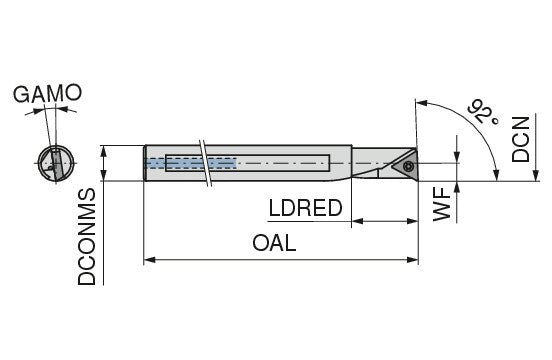

| Overall length / OAL | 3.3465" | 85.000 mm |
| Reduced body diameter length / LDRED | 0.5906" | 15.000 mm |
| Mounting spigot diameter / DCONMS | 0.3150" | 8.000 mm |
| Insert | TO.X 06T1.. | |
| Head length / LH | 0.1575" | 4.000 mm |
| Rake angle orthogonal / GAMO | 8.5 ° | |
| Cutting diameter minimum / DCN | 0.3110" | 7.900 mm |
| Functional width / WF | 0.1555" | 3.950 mm |
| torque moment | 0.62 Nm | |
| Version | Left | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
