Description
Ceratizit Article Number: 6282761600
Ceratizit Material Number: 12543944
Ceratizit Komet Number (Unpacked): B00 00650
Ceratizit Komet Number (Packed): B0000650
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit BORING BAR UJ17.5C.DIA.16MM SHK LH/WC KOMET MicroKom - Boring bar, Vibration-optimized 6282761600 | |
| EDP # | 0756218 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Aluminum (Green) Aluminum (Green) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 16.0 oz | 464 g |

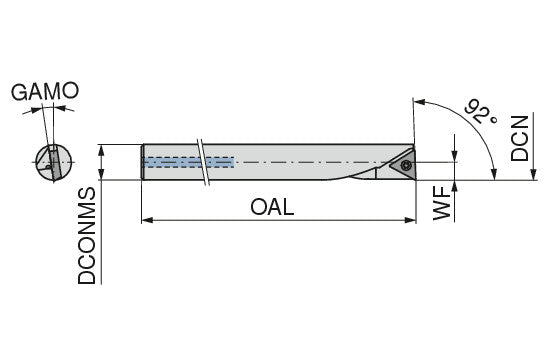

| Overall length / OAL | 7.0866" | 180.000 mm |
| Mounting spigot diameter / DCONMS | 0.6299" | 16.000 mm |
| Insert | TO.X 0902.. | |
| Head length / LH | 0.3150" | 8.000 mm |
| Rake angle orthogonal / GAMO | 4 ° | |
| Cutting diameter minimum / DCN | 0.6890" | 17.500 mm |
| Functional width / WF | 0.3445" | 8.750 mm |
| torque moment | 1.28 Nm | |
| Version | Left | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
