Description
Ceratizit Article Number: 6285611200
Ceratizit Material Number: 12543972
Ceratizit Komet Number (Unpacked): B00 15530
Ceratizit Komet Number (Packed): B0015530
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit BORING BAR FKO UJ 12,0 CoreLine - - hi.flex 6285611200 | |
| EDP # | 0756228 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Hard/Tool Steel (Grey) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 42.0 g |
| Product-Carbon-Footprint | B | |
| Productsystem | hi.flex | |

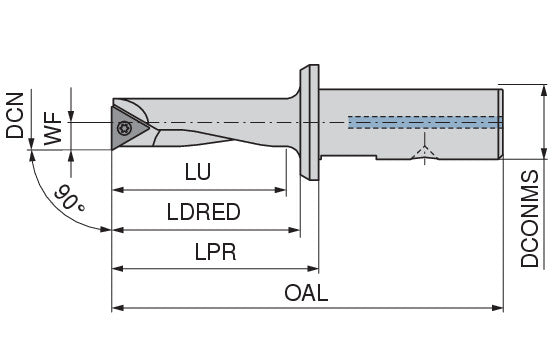

| Cutting diameter minimum / DCN | 0.4724" | 12.000 mm |
| Usable length / LU | 1.5354" | 39.000 mm |
| Reduced body diameter length / LDRED | 1.6142" | 41.000 mm |
| Mounting spigot diameter / DCONMS | 0.3150" | 8.000 mm |
| Insert | TO.X 0902.. | |
| Overall length / OAL | 2.6378" | 67.000 mm |
| Protruding length / LPR | 1.7717" | 45.000 mm |
| Flange diameter / DF | 0.6220" | 15.800 mm |
| Body diameter, reduced / BDRED | 0.4094" | 10.400 mm |
| Functional width / WF | 0.2343" | 5.950 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
