Description
Ceratizit Article Number: 6285601400
Ceratizit Material Number: 12543976
Ceratizit Komet Number (Unpacked): B00 15640
Ceratizit Komet Number (Packed): B0015640
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

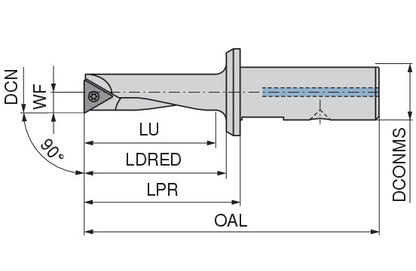

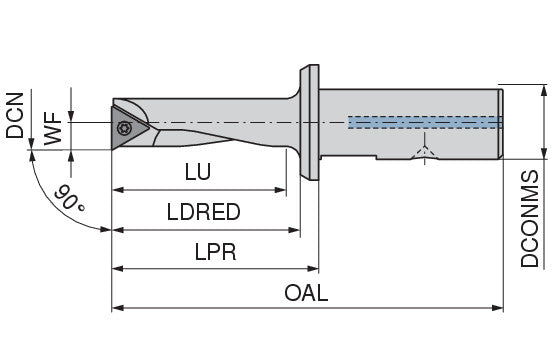

| Properties | ||
|---|---|---|
| Name | Ceratizit BORING BAR FK1-UJ-14R U4 CoreLine hi.flex 6285601400 | |
| EDP # | 0756232 | |
| Workpiece Material(s) | Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Hard/Tool Steel (Grey) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 5.0 oz | 140 g |
| Product-Carbon-Footprint | B | |
| Productsystem | hi.flex | |
| Cutting diameter minimum / DCN | 0.5512" | 14.000 mm |
| Usable length / LU | 1.6929" | 43.000 mm |
| Reduced body diameter length / LDRED | 1.8110" | 46.000 mm |
| Mounting spigot diameter / DCONMS | 0.6299" | 16.000 mm |
| Insert | TO.X 0902.. | |
| Overall length / OAL | 3.5433" | 90.000 mm |
| Protruding length / LPR | 1.9685" | 50.000 mm |
| Flange diameter / DF | 0.9843" | 25.000 mm |
| Body diameter, reduced / BDRED | 0.4882" | 12.400 mm |
| Functional width / WF | 0.2736" | 6.950 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
