Description
Ceratizit Article Number: 6285710989
Ceratizit Material Number: 12543994
Ceratizit Komet Number (Unpacked): B00 25640
Ceratizit Komet Number (Packed): B0025640
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

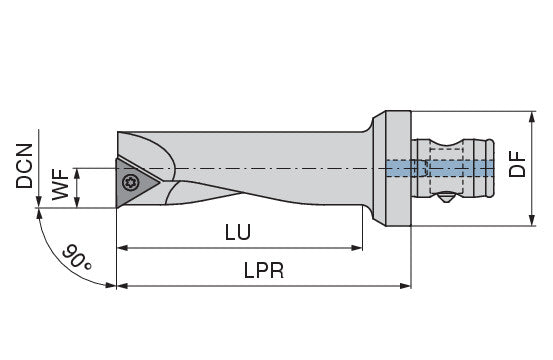

| Properties | ||
|---|---|---|
| Name | Ceratizit BORING BAR ABS32-KFK1-UJ14R KOMET MicroKom Boring Bar 6285710989 | |
| EDP # | 0756243 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Aluminum (Green) Composites (Black) Hard/Tool Steel (Grey) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 6.0 oz | 156 g |
| Overall length / OAL | 3.4252" | 87.000 mm |
| Mounting spigot diameter / DCONMS | 0.6299" | 16.000 mm |
| Insert | TO.X 0902.. | |
| Usable length / LU | 1.9291" | 49.000 mm |
| Protruding length / LPR | 2.5197" | 64.000 mm |
| Flange diameter / DF | 1.2598" | 32.000 mm |
| Cutting diameter minimum / DCN | 0.5512" | 14.000 mm |
| Body diameter, reduced / BDRED | 0.4882" | 12.400 mm |
| Functional width / WF | 0.2736" | 6.950 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
