Description
Ceratizit Article Number: 6285717989
Ceratizit Material Number: 12543998
Ceratizit Komet Number (Unpacked): B00 25681
Ceratizit Komet Number (Packed): B0025681
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit BORING BAR ABS32-KFK1-UJ22R CoreLine hi.flex 6285717989 | |
| EDP # | 0756247 | |
| Workpiece Material(s) | Stainless Steel (Yellow) Steel (Blue) Cast Iron (Red) Hard/Tool Steel (Grey) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Hard/Tool Steel (Grey) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 9.0 oz | 263 g |
| Product-Carbon-Footprint | B | |
| Productsystem | hi.flex | |

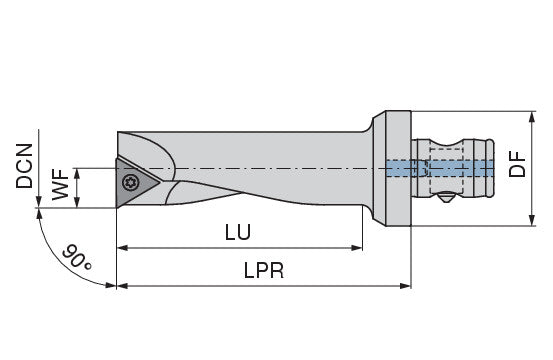

| Cutting diameter minimum / DCN | 0.8661" | 22.000 mm |
| Usable length / LU | 2.6772" | 68.000 mm |
| Mounting spigot diameter / DCONMS | 0.6299" | 16.000 mm |
| Insert | TO.X 0902.. | |
| Overall length / OAL | 4.1339" | 105.000 mm |
| Protruding length / LPR | 3.2283" | 82.000 mm |
| Flange diameter / DF | 1.2598" | 32.000 mm |
| Body diameter, reduced / BDRED | 0.7972" | 20.250 mm |
| Functional width / WF | 0.4311" | 10.950 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
