Description
Ceratizit Article Number: 6282560600
Ceratizit Material Number: 12544024
Ceratizit Komet Number (Unpacked): B00 35400
Ceratizit Komet Number (Packed): B0035400
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

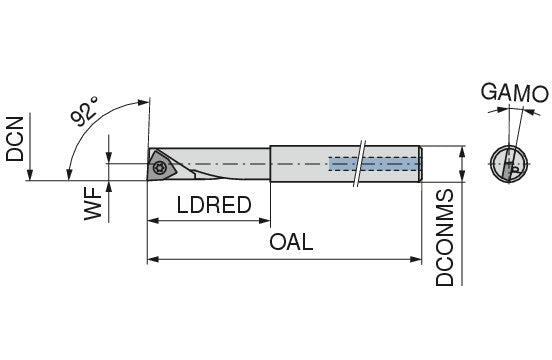

| Properties | ||
|---|---|---|
| Name | Ceratizit BORING BAR WITH THROUGH COOLANT Ø5,6 KOMET MicroKom - Boring bar, Vibration-optimized 6282560600 | |
| EDP # | 0756254 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Hard/Tool Steel (Grey) HiTemp Alloy (Orange) Aluminum (Green) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 37.0 g |
| Overall length / OAL | 3.9370" | 100.000 mm |
| Reduced body diameter length / LDRED | 1.9685" | 50.000 mm |
| Mounting spigot diameter / DCONMS | 0.2362" | 6.000 mm |
| Insert | WOHX 02T0.. | |
| Rake angle orthogonal / GAMO | 10.25 ° | |
| Cutting diameter minimum / DCN | 0.2205" | 5.600 mm |
| Functional width / WF | 0.1102" | 2.800 mm |
| torque moment | 0.38 Nm | |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
