Description
Ceratizit Article Number: 6281111091
Ceratizit Material Number: 12544045
Ceratizit Komet Number (Unpacked): B30 07010
Ceratizit Komet Number (Packed): B3007010
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit FINE BORING HEAD ABS100-FZ32-3 CoreLine Precision Adjustment 6281111091 | |
| EDP # | 0756272 | |
| Weight (1 pc.) | 277.0 oz | 7860 g |
| Product-Carbon-Footprint | B | |
| Productsystem | FZ | |
| Dmin - Dmax | 110 - 175 | |
| Machine interface size | ABS 100 | |

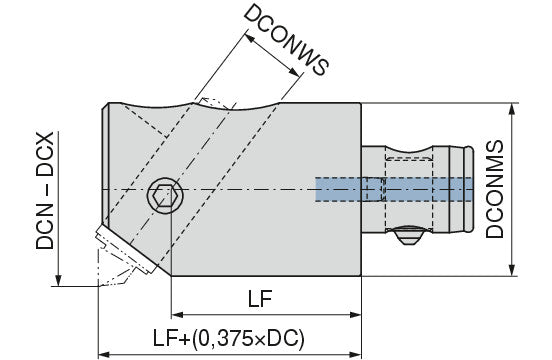

| Clamping diameter (DCONWS) / DCONWS | 1.2598" | 32.000 mm |
| Mounting spigot diameter / DCONMS | 2.2047" | 56.000 mm |
| Flange diameter / DF | 3.9370" | 100.000 mm |
| Body length / LB | 4.9213" | 125.000 mm |
| Shank length / LS | 2.1654" | 55.000 mm |
| Functional length / LF | 3.3268" | 84.500 mm |
| torque moment | 80 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
