Ceratizit FINE BORING HEAD ABS63-FF79,0 CoreLine Prec. Adjustment 6281009496 (0756281) [SKU:6281009496]

Ceratizit FINE BORING HEAD ABS63-FF79,0 CoreLine Prec. Adjustment 6281009496 (0756281) [SKU:6281009496]

Quantity
Sign in to see pricing.
Shipping calculated at checkout.

Ceratizit Article Number: 6281009496

Ceratizit Material Number: 12544054

Ceratizit Komet Number (Unpacked): B30 15010

Ceratizit Komet Number (Packed): B3015010

Ceratizit is a large tooling company based in Luxembourg (Europe).

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

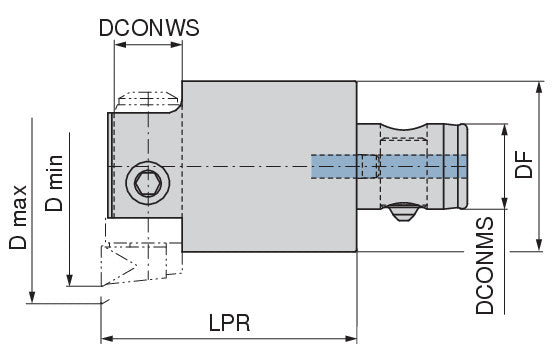

Properties
Name Ceratizit FINE BORING HEAD ABS63-FF79,0 CoreLine Prec. Adjustment 6281009496
EDP # 0756281
Weight (1 pc.) 59.0 oz 1659 g
Product-Carbon-Footprint B
Product System FF
Dmin - Dmax 79 - 94
Machine interface size ABS 63
Clamping diameter (DCONWS) / DCONWS 0.9843" 25.000 mm
Mounting spigot diameter / DCONMS 1.3386" 34.000 mm
Flange diameter / DF 2.4803" 63.000 mm
Protruding length / LPR 2.7559" 70.000 mm
Body length / LB 2.6969" 68.500 mm
nominal size / SZID ABS 63
Shank length / LS 1.4961" 38.000 mm
Functional length / LF 2.1260" 54.000 mm


Background Information:

CERATIZIT’s (formerly Komet’s) patented modular ABS adapter system gives users exceptional flexibility together with fast tool changes. The system can be used with all common machine interfaces. An adapter with ABS interface must be built directly into the machine spindle. After that, users can choose from a huge range of adapters: from hydraulic chucks, short drill chucks and collet chucks through to damping elements, extensions and much more - the right, customised and modular cutting tool can be created for every requirement. Once the system with the specific interfaces has been implemented in production, the modular tools can be flexibly used on different machines. Tool changes are made easy with just a few simple steps. Besides this, the system offers exceptional clamping force and precision.


Company History:

The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
