Description
Ceratizit Article Number: 6281019991
Ceratizit Material Number: 12544060
Ceratizit Komet Number (Unpacked): B30 17030
Ceratizit Komet Number (Packed): B3017030
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

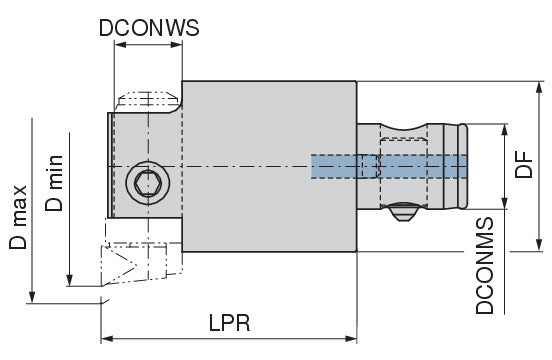

| Properties | ||
|---|---|---|
| Name | Ceratizit FINE BORING HEAD ABS100-FF178,0 CoreLine Precision Adjustment 6281019991 | |
| EDP # | 0756287 | |
| Weight (1 pc.) | 234.0 oz | 6630 g |
| Product-Carbon-Footprint | B | |
| Productsystem | FF | |
| Dmin - Dmax | 178 - 199 | |
| Machine interface size | ABS 100 | |
| Clamping diameter (DCONWS) / DCONWS | 1.2598" | 32.000 mm |
| Mounting spigot diameter / DCONMS | 2.2047" | 56.000 mm |
| Body diameter maximum / BDX | 5.5118" | 140.000 mm |
| Flange diameter / DF | 3.9370" | 100.000 mm |
| Protruding length / LPR | 3.5433" | 90.000 mm |
| Body length / LB | 3.4843" | 88.500 mm |
| nominal size / SZID | ABS 100 | |
| Shank length / LS | 2.1654" | 55.000 mm |
| Functional length / LF | 2.7953" | 71.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
