Ceratizit TURNING TOOL IK55-10-UL CoreLine Boring Bar 6283021000 (0756290)
Ceratizit TURNING TOOL IK55-10-UL CoreLine Boring Bar 6283021000 (0756290)
Couldn't load pickup availability
Ceratizit Article Number: 6283021000
Ceratizit Material Number: 12544116
Ceratizit Komet Number (Unpacked): D02 10122
Ceratizit Komet Number (Packed): D0210122
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit TURNING TOOL IK55-10-UL CoreLine Boring Bar 6283021000 | |
| EDP # | 0756290 | |
| Workpiece Material(s) | Stainless Steel (Yellow) Steel (Blue) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 2.0 oz | 57.4 g |
| Product-Carbon-Footprint | B | |

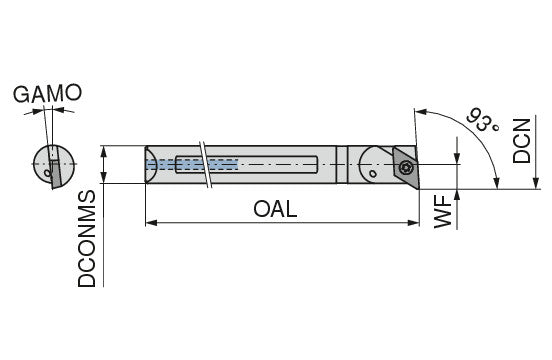

| Cutting diameter minimum / DCN | 0.5118" | 13.000 mm |
| Mounting spigot diameter / DCONMS | 0.3937" | 10.000 mm |
| Insert | DO.T 0702.. | |
| Overall length / OAL | 3.9370" | 100.000 mm |
| Rake angle orthogonal / GAMO | 6 ° | |
| Functional width / WF | 0.2559" | 6.500 mm |
| torque moment | 1.28 Nm | |
| Version | Left | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
