Description
Ceratizit Article Number: 6282701000
Ceratizit Material Number: 12544151
Ceratizit Komet Number (Unpacked): D02 20121
Ceratizit Komet Number (Packed): D0220121
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit TURNING TOOL Z10L100-U4-25 CoreLine Boring Bar 6282701000 | |
| EDP # | 0756297 | |
| Workpiece Material(s) | Stainless Steel (Yellow) Steel (Blue) Cast Iron (Red) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Hard/Tool Steel (Grey) Aluminum (Green) Aluminum (Green) Composites (Black) Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 2.0 oz | 70.0 g |
| Product-Carbon-Footprint | B | |

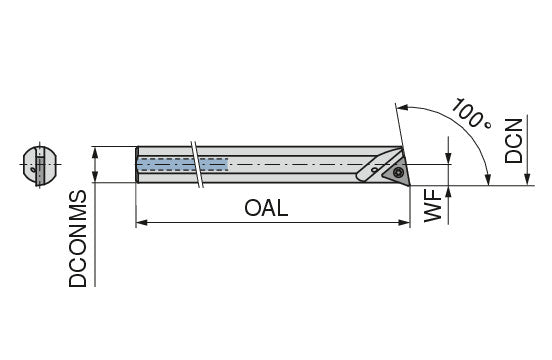

| Cutting diameter minimum / DCN | 0.4528" | 11.500 mm |
| Mounting spigot diameter / DCONMS | 0.3937" | 10.000 mm |
| Insert | TO.X 0902.. | |
| Overall length / OAL | 4.9213" | 125.000 mm |
| Functional width / WF | 0.2244" | 5.700 mm |
| torque moment | 1.28 Nm | |
| Version | Left | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
