Description
Ceratizit Article Number: 1095007100
Ceratizit Material Number: 12544586
Ceratizit Komet Number (Unpacked): D53 56211
Ceratizit Komet Number (Packed): D5356211
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

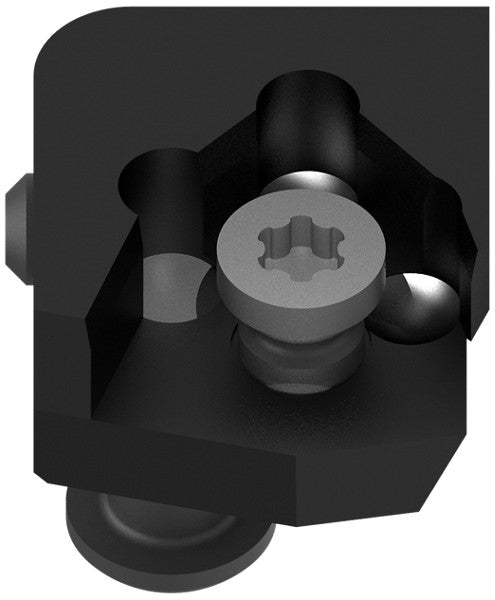

| Name | Ceratizit Insert Seating 80° D53; Indexable - Setting Angle 1095007100 | |
| EDP # | 0756383 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Cast Iron (Red) Hard/Tool Steel (Grey) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 23.8 g |
| Product-Carbon-Footprint | B | |
| for | Ø 44,5 - Ø 55 | |
| torque moment | 6.25 Nm | |
| Insert | WOEX 080404 | |
| Tool cutting edge angle / KAPR | 80 ° | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
