Description
Ceratizit Article Number: 1095007500
Ceratizit Material Number: 12544590
Ceratizit Komet Number (Unpacked): D53 56310
Ceratizit Komet Number (Packed): D5356310
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

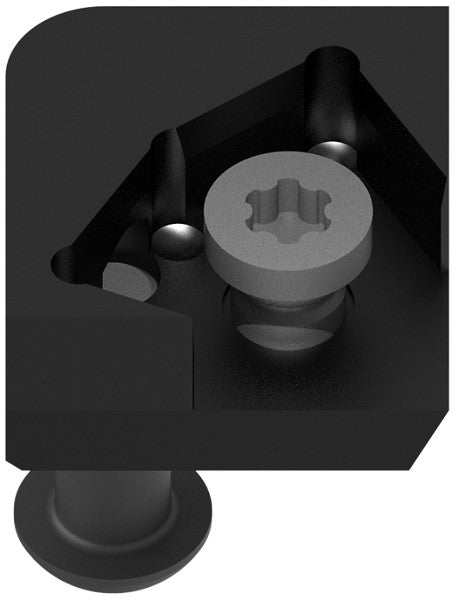

| Name | Ceratizit Insert Seating 90° D53; Indexable - Setting Angle 1095007500 | |
| EDP # | 0756387 | |
| Workpiece Material(s) | Stainless Steel (Yellow) Steel (Blue) Cast Iron (Red) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Composites (Black) Aluminum (Green) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 0.5 oz | 13.4 g |
| Product-Carbon-Footprint | B | |
| for | Ø 37 - Ø 44 | |
| torque moment | 2.8 Nm | |
| Insert | WOEX 06T304 | |
| Tool cutting edge angle / KAPR | 90 ° | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
