Description
Ceratizit Article Number: 3019630000
Ceratizit Material Number: 12544648
Ceratizit Komet Number (Unpacked): F10 00081
Ceratizit Komet Number (Packed): F1000081
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit COUNTERSINK TOOL KWS-M16 CoreLine Insert 90° WPS 3019630000 | |
| EDP # | 0756414 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Aluminum (Green) Aluminum (Green) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 9.0 oz | 245 g |
| Product-Carbon-Footprint | B | |
| for screws | M16 | |

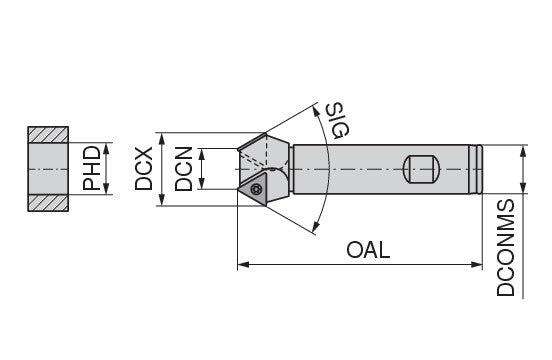

| Cutting diameter maximum / DCX | 1.1811" | 30.000 mm |
| Cutting diameter minimum / DCN | 0.4724" | 12.000 mm |
| Premachined hole diameter / PHD | 0.5118" | 13.000 mm |
| Mounting spigot diameter / DCONMS | 0.7874" | 20.000 mm |
| Overall length / OAL | 3.9370" | 100.000 mm |
| Peripheral effective cutting edge count / ZEFP | 2.0000" | 50.800 mm |
| Face mounted insert count / ZNF | 2.0000" | 50.800 mm |
| torque moment | 2.8 Nm | |
| Insert | TOHX 140305 | |
| SIG / SIG | 90 ° | |
| Minimum Extension (DIN 6535 HA) | 1.8898" - 1.9685" | 48.000 - 50.000 mm |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
