Ceratizit COUNTERSINK TOOL KWS-M20-60 CoreLine Insert 60° WPS 3019725500 (0756421) [SKU:3019725500]

Ceratizit COUNTERSINK TOOL KWS-M20-60 CoreLine Insert 60° WPS 3019725500 (0756421) [SKU:3019725500]

Sign in to see pricing.
Shipping calculated at checkout.

Ceratizit Article Number: 3019725500

Ceratizit Material Number: 12544655

Ceratizit Komet Number (Unpacked): F10 00400

Ceratizit Komet Number (Packed): F1000400

Ceratizit is a large tooling company based in Luxembourg (Europe).

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name Ceratizit COUNTERSINK TOOL KWS-M20-60 CoreLine Insert 60° WPS 3019725500
EDP # 0756421
Workpiece Material(s) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Hard/Tool Steel (Grey) Aluminum (Green) All Materials (White)
Weight (1 pc.) 6.0 oz 170 g
Product-Carbon-Footprint B
for screws M20

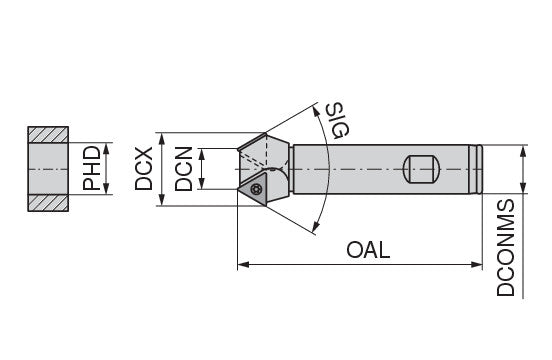

Cutting diameter maximum / DCX 1.0039" 25.500 mm
Cutting diameter minimum / DCN 0.6732" 17.100 mm
Premachined hole diameter / PHD 0.6890" 17.500 mm
Mounting spigot diameter / DCONMS 0.6299" 16.000 mm
Overall length / OAL 3.9370" 100.000 mm
Peripheral effective cutting edge count / ZEFP 2
Face mounted insert count / ZNF 2
torque moment 1.28 Nm
Insert TOHX 090204
SIG / SIG 60 °
Minimum Extension (DIN 6535 HA) 1.9685" - 2.0472" 50.000 - 52.000 mm


Tool Form:

'C' form tools are for chamfering and deburring, available in a large array of tip angles.


Company History:

The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
