Description
Ceratizit Article Number: 3019802000
Ceratizit Material Number: 12544660
Ceratizit Komet Number (Unpacked): F10 10060
Ceratizit Komet Number (Packed): F1010060
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit COUNTERSINK TOOL KWZ-M12-K1 CoreLine Insert 180° WPS 3019802000 | |
| EDP # | 0756426 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Cast Iron (Red) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 10.0 oz | 287 g |
| Product-Carbon-Footprint | B | |

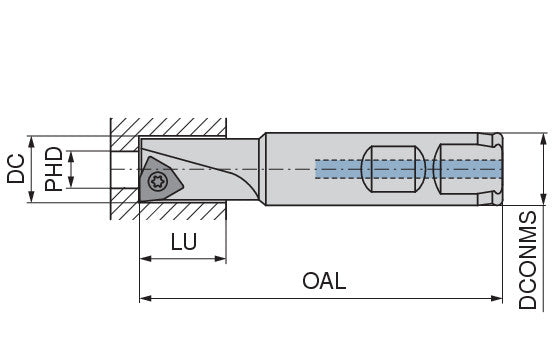

| Cutting diameter / DC | 0.7874" | 20.000 mm |
| Premachined hole diameter / PHD | 0.5118" | 13.000 mm |
| Mounting spigot diameter / DCONMS | 0.9843" | 25.000 mm |
| Overall length / OAL | 3.9370" | 100.000 mm |
| Peripheral effective cutting edge count / ZEFP | 1.0000" | 25.400 mm |
| Face mounted insert count / ZNF | 1.0000" | 25.400 mm |
| torque moment | 1.28 Nm | |
| Insert | WOEX 05T304 | |
| Usable length / LU | 0.7874" | 20.000 mm |
| SIG / SIG | 180 ° | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
