Description
Ceratizit Article Number: 6286802089
Ceratizit Material Number: 12544698
Ceratizit Komet Number (Unpacked): G10 10141
Ceratizit Komet Number (Packed): G1010141
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

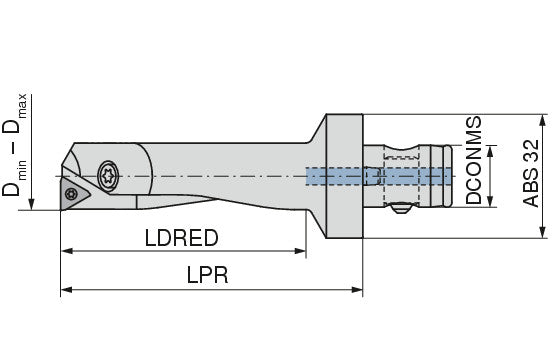

| Properties | ||
|---|---|---|
| Name | Ceratizit ADJUSTABLE BORING BAR ABS32-VE18U KOMET MicroKom Adjustable Boring Bar Bridge 6286802089 | |
| EDP # | 0756437 | |
| Weight (1 pc.) | 8.0 oz | 214 g |
| Dmin - Dmax | 0.3110" - 0.7874" | 7.900 - 20.000 mm |
| Reduced body diameter length / LDRED | 2.4803" | 63.000 mm |
| Mounting spigot diameter / DCONMS | 0.6299" | 16.000 mm |
| Machine interface size | ABS 32 | |
| Protruding length / LPR | 3.0709" | 78.000 mm |
| Cutting diameter minimum / DCN | 0.7047" | 17.900 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
