Ceratizit ADAPTOR Ø16 CoreLine - Carbide Boring Shank - hi.flex 6285301700 (0756450)
Ceratizit ADAPTOR Ø16 CoreLine - Carbide Boring Shank - hi.flex 6285301700 (0756450)
Couldn't load pickup availability
Ceratizit Article Number: 6285301700
Ceratizit Material Number: 12544708
Ceratizit Komet Number (Unpacked): G10 12070
Ceratizit Komet Number (Packed): G1012070
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit ADAPTOR Ø16 CoreLine - Carbide Boring Shank - hi.flex 6285301700 | |
| EDP # | 0756450 | |
| Weight (1 pc.) | 11.0 oz | 306 g |
| Product-Carbon-Footprint | E | |
| Productsystem | hi.flex | |

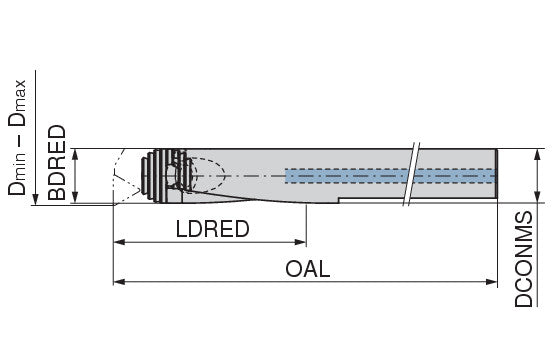

| Reduced body diameter length / LDRED | 3.9370" | 100.000 mm |
| Mounting spigot diameter / DCONMS | 0.6299" | 16.000 mm |
| Overall length / OAL | 5.5118" | 140.000 mm |
| Dmin - Dmax | 17 - 22 | |
| Body diameter, reduced / BDRED | 0.6299" | 16.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
