Description
Ceratizit Article Number: 6285401500
Ceratizit Material Number: 12544713
Ceratizit Komet Number (Unpacked): G10 12841
Ceratizit Komet Number (Packed): G1012841
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

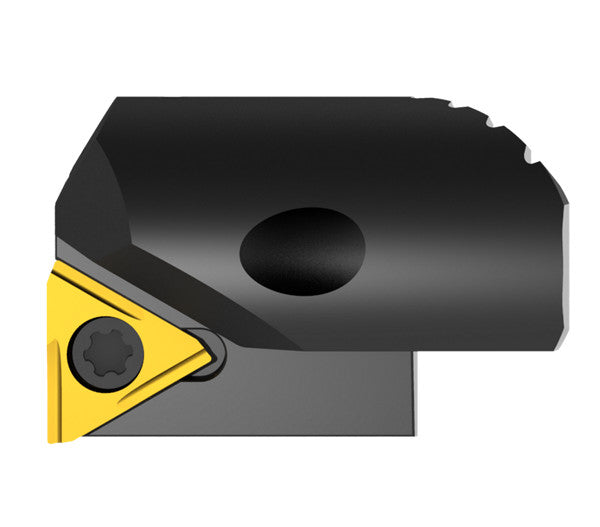

| Name | Ceratizit TURNING HEAD VE 15 U CoreLine - Boring - hi.flex 6285401500 | |
| EDP # | 0756455 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Aluminum (Green) Aluminum (Green) Composites (Black) Hard/Tool Steel (Grey) Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 19.0 g |
| Product-Carbon-Footprint | E | |
| Productsystem | hi.flex | |
| Dmin - Dmax | 15 - 17 | |
| Functional width / WF | 0.2933" | 7.450 mm |
| Body diameter, reduced / BDRED | 0.4724" | 12.000 mm |
| Insert | TO.X 0902.. | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
