Description
Ceratizit Article Number: 6261530203
Ceratizit Material Number: 12545277
Ceratizit Komet Number (Unpacked): H60 20500.84
Ceratizit Komet Number (Packed): H602050084
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

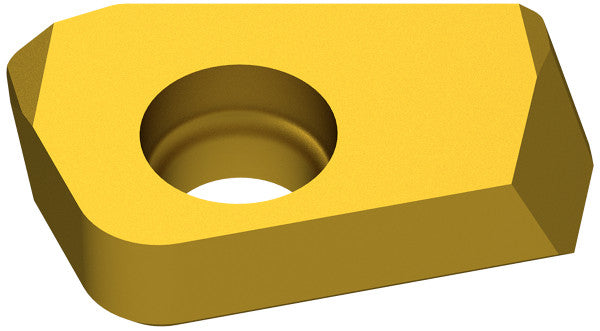

| Name | Ceratizit Insert XOHX0802-20,5BK84; CoreLine Carbide Drilling indexable 6261530203 | |
| EDP # | 0756457 | |
| Weight (1 pc.) | 0.2 oz | 5.1 g |
| designation | 0802ER | |
| insert thickness | 2.0000" | 50.800 mm |
| Fixing hole diameter / D1 | 0.0984" | 2.500 mm |
| Insert thickness / S | 0.0984" | 2.500 mm |
| Cutting edge length / L | 0.3150" | 8.000 mm |
| for | Ø 20,5 | |
| Cutting diameter / DC | 0.8071" | 20.500 mm |
| Size | 8.0000" | 203.200 mm |
| Coating name / Grade (Ceratizit) / COATN | BK84 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
