Description
Ceratizit Article Number: 6261570803
Ceratizit Material Number: 12545293
Ceratizit Komet Number (Unpacked): H60 21500.2715
Ceratizit Komet Number (Packed): H60215002715
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

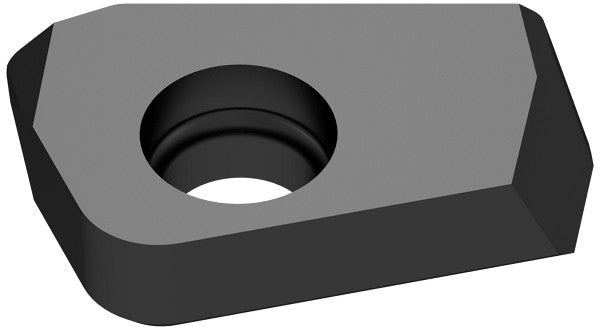

| Name | Ceratizit INSERT XOHX 1003-21,5 BK2715 6261570803 | |
| EDP # | 0756462 | |
| Weight (1 pc.) | 0.2 oz | 4.7 g |
| designation | 1003ER | |
| insert thickness | 03 | |
| Fixing hole diameter / D1 | 0.1299" | 3.300 mm |
| Insert thickness / S | 0.1181" | 3.000 mm |
| for | Ø 21,5 | |
| Cutting diameter / DC | 0.8465" | 21.500 mm |
| Coating name / Grade (Ceratizit) / COATN | BK2715 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
