Description
Ceratizit Article Number: 8421006396
Ceratizit Material Number: 12545843
Ceratizit Komet Number (Unpacked): M01 00021
Ceratizit Komet Number (Packed): M0100021
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

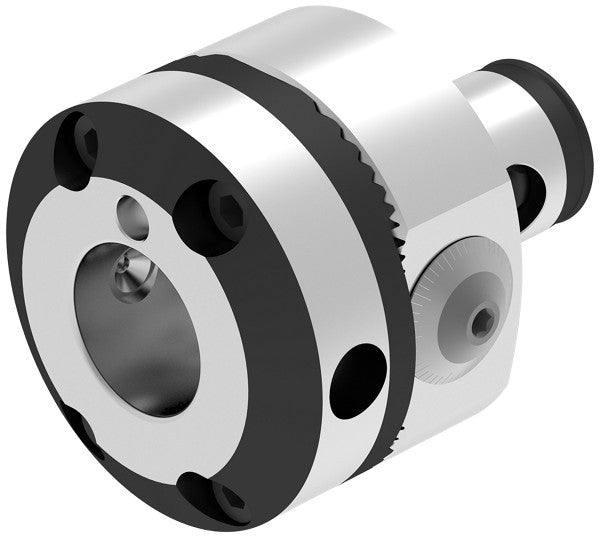

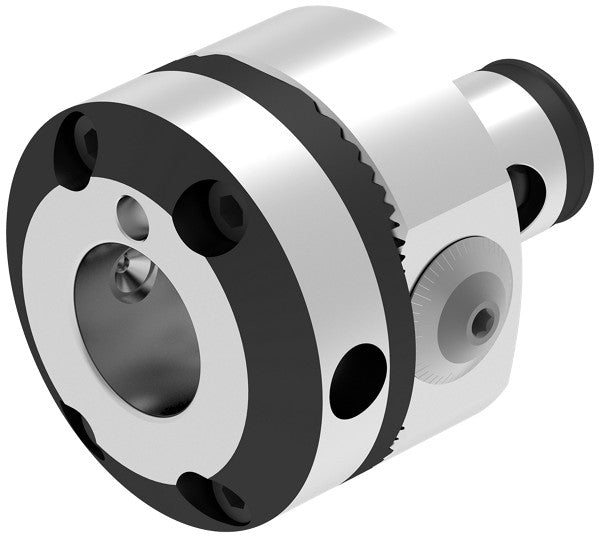

| Name | Ceratizit MICRO ADJUSTABLE HOLDER ABS63/63-MV CoreLine Adjuster With Connection 8421006396 | |
| EDP # | 0756519 | |
| Weight (1 pc.) | 103.0 oz | 2912 g |
| Product-Carbon-Footprint | E | |
| Machine interface size | ABS 63 | |
| nominal size / SZID | ABS 63 | |

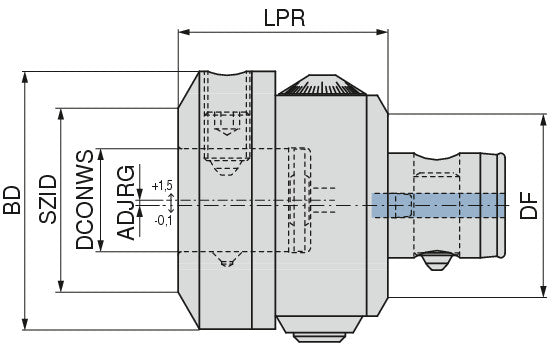

| Protruding length / LPR | 2.7559" | 70.000 mm |
| Adjustment range / ADJRG | 0.0591" | 1.500 mm |
| Body taper end diameter / BTED | 2.4803" | 63.000 mm |
| Mounting spigot diameter / DCONMS | 1.3386" | 34.000 mm |
| Overall length / OAL | 4.2520" | 108.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 1.3386" | 34.000 mm |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
