Description
Ceratizit Article Number: 6286607000
Ceratizit Material Number: 12545926
Ceratizit Komet Number (Unpacked): M05 90300
Ceratizit Komet Number (Packed): M0590300
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

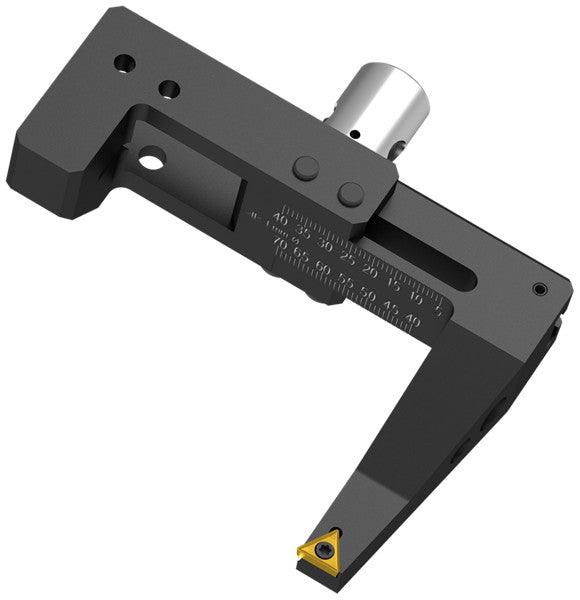

| Name | Ceratizit SET UP BRIDGE CoreLine - Boring Tool For External Machining - hi.flex 6286607000 | |
| EDP # | 0756535 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Aluminum (Green) Composites (Black) Aluminum (Green) Composites (Black) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Hard/Tool Steel (Grey) All Materials (White) | |
| Weight (1 pc.) | 19.0 oz | 547 g |
| Productsystem | hi.flex | |

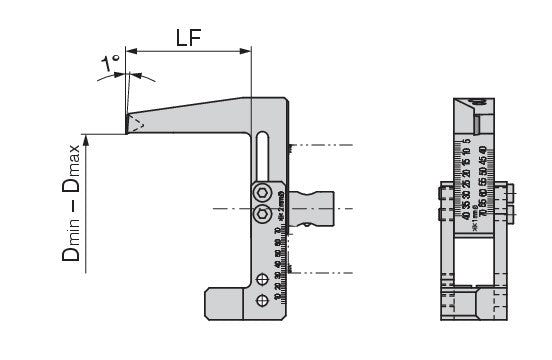

| Functional length / LF | 2.2835" | 58.000 mm |
| Insert | TO.X 0902.. | |
| Dmin - Dmax | 5 - 70 | |
| Machine interface size | ABS 32 | |
| Cutting diameter maximum / DCX | 2.7559" | 70.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
