Description
Ceratizit Article Number: 6284970000
Ceratizit Material Number: 12545948
Ceratizit Komet Number (Unpacked): M31 00042
Ceratizit Komet Number (Packed): M3100042
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

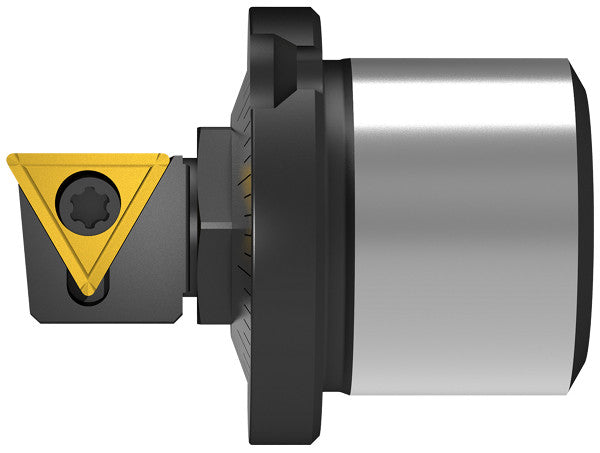

| Name | Ceratizit M31 CARTRIDGE D=32 WSP W3026 CoreLine - Precision Turning Insert | |
| EDP # | 0756537 | |
| Workpiece Material(s) | Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Hard/Tool Steel (Grey) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Hard/Tool Steel (Grey) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 14.0 oz | 400 g |
| Productsystem | M31 | |

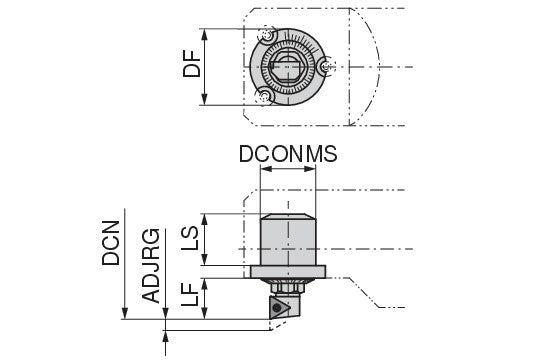

| Functional length / LF | 1.0039" | 25.500 mm |
| Mounting spigot diameter / DCONMS H6 | 1.2598" | 32.000 mm |
| Insert | TO.X 1403.. | |
| Shank length / LS | 1.0913" | 27.720 mm |
| Flange diameter / DF | 1.8110" | 46.000 mm |
| Cutting diameter minimum / DCN | 2.7559" | 70.000 mm |
| Adjustment range / ADJRG | 0.2055" | 5.220 mm |
| torque moment | 2.8 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
