Description
Ceratizit Article Number: 6284936500
Ceratizit Material Number: 12545950
Ceratizit Komet Number (Unpacked): M31 00153
Ceratizit Komet Number (Packed): M3100153
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

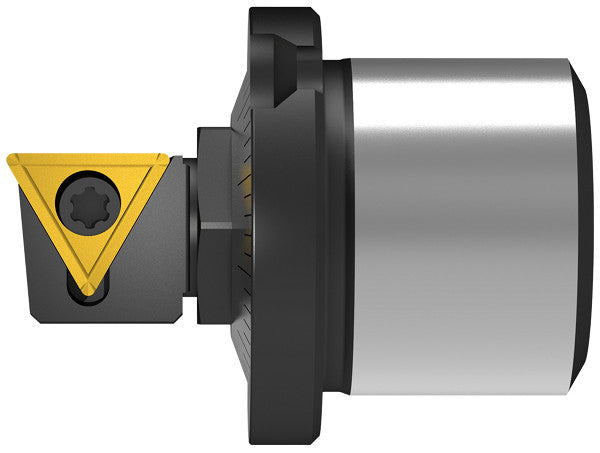

| Name | Ceratizit CARTRIDGE CoreLine - Precision Turning Insert | |
| EDP # | 0756538 | |
| Weight (1 pc.) | 3.0 oz | 80.8 g |
| Productsystem | M31 | |

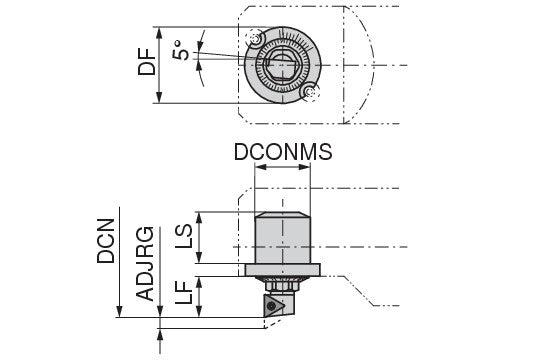

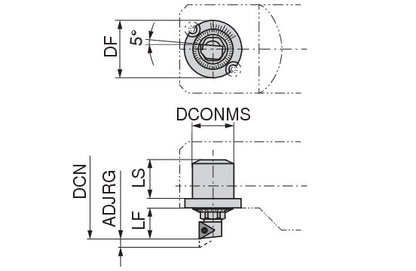

| Functional length / LF | 0.5315" | 13.500 mm |
| Mounting spigot diameter / DCONMS H6 | 0.7500" | 19.050 mm |
| Insert | TP.. 0902.. | |
| Shank length / LS | 0.5843" | 14.840 mm |
| Flange diameter / DF | 0.9685" | 24.600 mm |
| Cutting diameter minimum / DCN | 1.4370" | 36.500 mm |
| Adjustment range / ADJRG | 0.0433" | 1.100 mm |
| torque moment | 1.28 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
