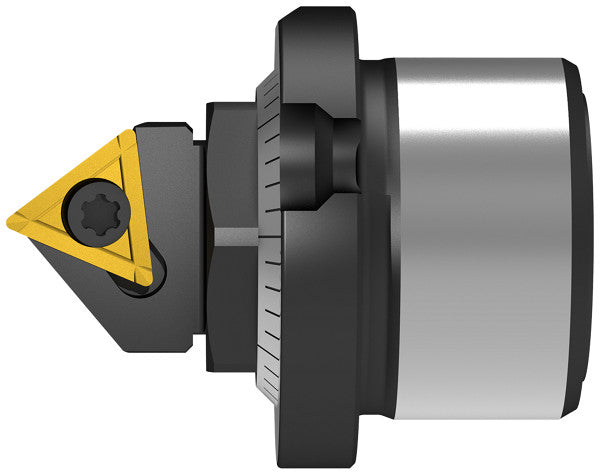

Ceratizit TOP ADJ. CARTRIDGE D=22 W3014 CoreLine - Precision Turning Insert (angled installation) - M31 6284843000 (0756539)
Ceratizit TOP ADJ. CARTRIDGE D=22 W3014 CoreLine - Precision Turning Insert (angled installation) - M31 6284843000 (0756539)
Couldn't load pickup availability
Ceratizit Article Number: 6284843000
Ceratizit Material Number: 12545953
Ceratizit Komet Number (Unpacked): M31 01032
Ceratizit Komet Number (Packed): M3101032
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit TOP ADJ. CARTRIDGE D=22 W3014 CoreLine - Precision Turning Insert | |
| EDP # | 0756539 | |
| Workpiece Material(s) | Stainless Steel (Yellow) Steel (Blue) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Cast Iron (Red) Hard/Tool Steel (Grey) Aluminum (Green) Hard/Tool Steel (Grey) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 5.0 oz | 155 g |
| Productsystem | M31 | |

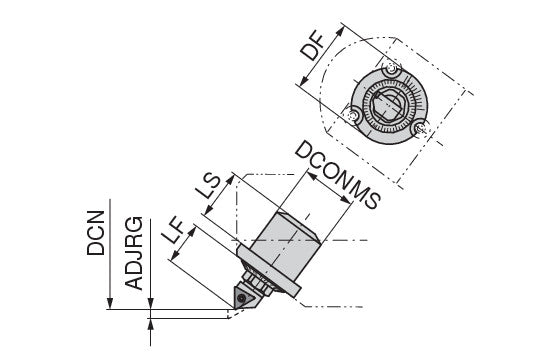

| Functional length / LF | 0.7244" | 18.400 mm |
| Mounting spigot diameter / DCONMS H6 | 0.8661" | 22.000 mm |
| Insert | TO.X 0902.. | |
| Shank length / LS | 0.8504" | 21.600 mm |
| Flange diameter / DF | 1.1811" | 30.000 mm |
| Cutting diameter minimum / DCN | 1.6929" | 43.000 mm |
| Adjustment range / ADJRG | 0.1220" | 3.100 mm |
| torque moment | 1.28 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
