Description
Ceratizit Article Number: 6284861000
Ceratizit Material Number: 12545954
Ceratizit Komet Number (Unpacked): M31 01042
Ceratizit Komet Number (Packed): M3101042
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

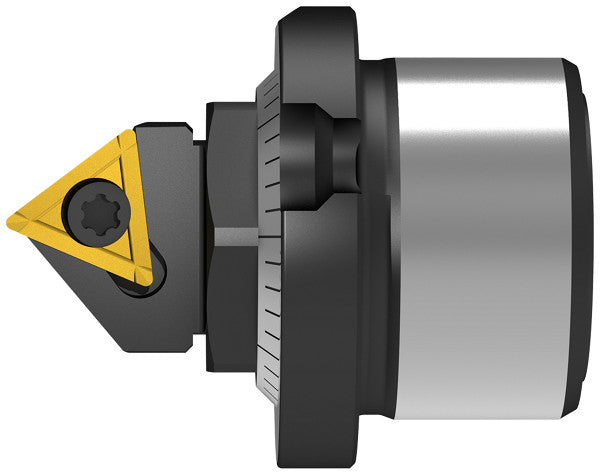

| Name | Ceratizit TOP ADJ. CARTRIDGE D=32 W3026 Precision Turning Insert M31 | |
| EDP # | 0756540 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Hard/Tool Steel (Grey) Aluminum (Green) Composites (Black) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 11.0 oz | 302 g |

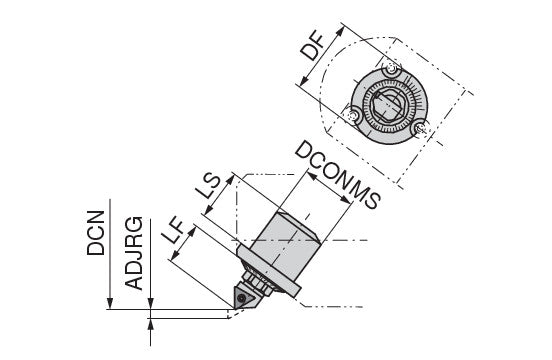

| Functional length / LF | 1.0709" | 27.200 mm |
| Mounting spigot diameter / DCONMS H6 | 1.2598" | 32.000 mm |
| Insert | TO.X 1403.. | |
| Shank length / LS | 1.0866" | 27.600 mm |
| Flange diameter / DF | 1.8110" | 46.000 mm |
| Cutting diameter minimum / DCN | 2.4016" | 61.000 mm |
| Adjustment range / ADJRG | 0.1811" | 4.600 mm |
| torque moment | 2.8 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
